Głowica A280 - art

SPARTUS A280 LASER HEAD

The A280 laser head has been designed with a focus on excellent welding quality – it ensures deep penetration, durable and aesthetic welds, and minimal material distortion, resulting in reliable and consistent outcomes…


Podajnik pojedynczy

SINGLE WIRE FEEDER

The wire feeder is a key addition to the laser welder – it delivers the filler material precisely and automatically, ensuring full control over the process, improving weld quality, and increasing production efficiency…

Technical parameter

Input~1× 230V ± 10% 50 / 60 Hz

Output power2000W

Operating modeciągły / modulowany

Cooling typegaz

Duty cycle100%

Scanning speed2 - 6000 mm/s

Scanning width0-6 mm

Frequency1 - 5000 Hz

Weight52 kg

Dimensions750 x 365 x 635 mm

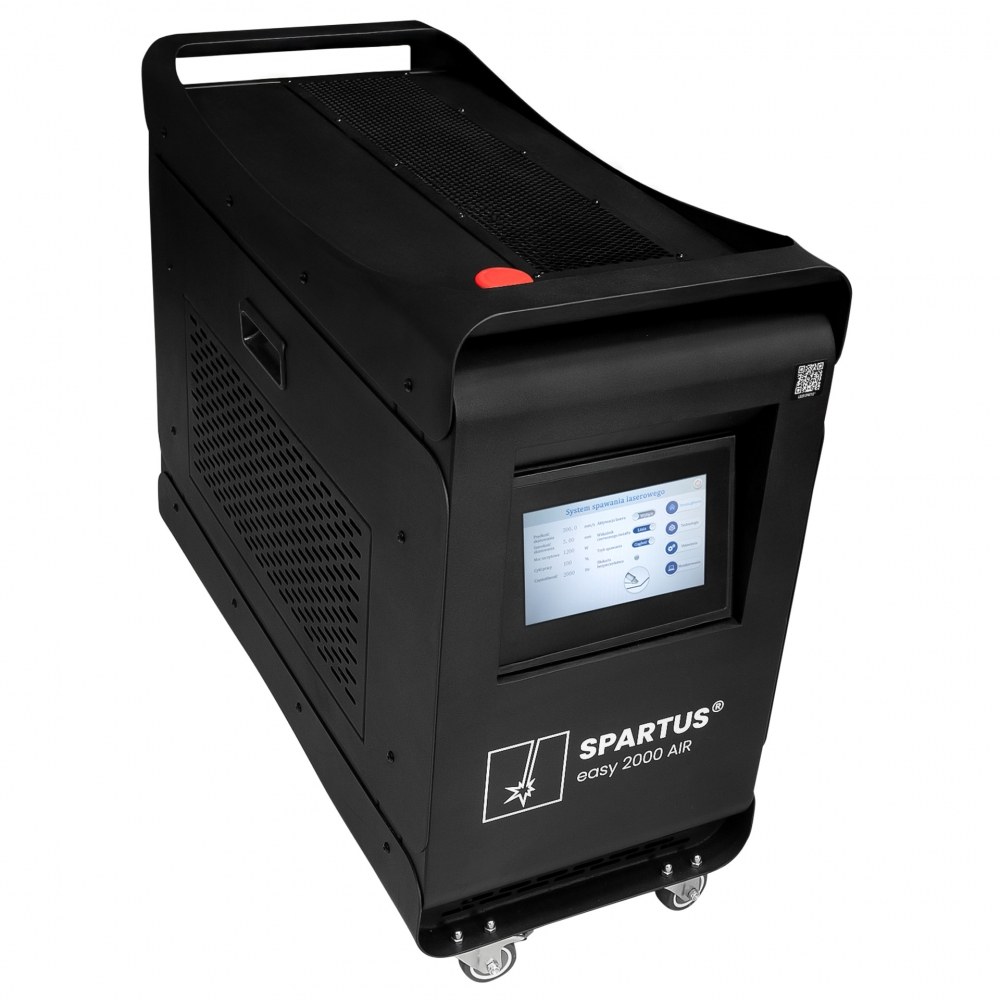

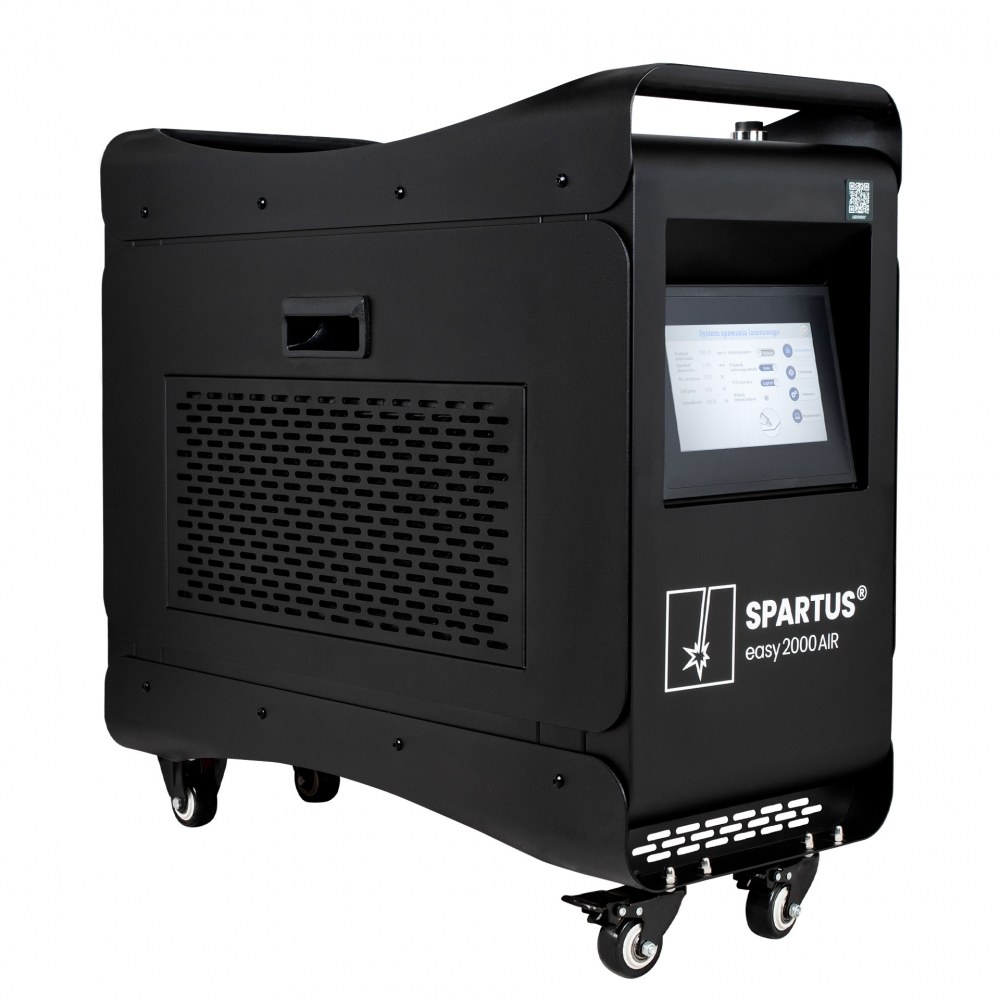

The best mobile solution for precise material processing

The SPARTUS Easy 2000AIR Laser Welder is the pinnacle of technological innovation, enclosed in a compact and mobile device.
This advanced tool offers unmatched precision and speed, enhancing the quality of your welding, cutting, and cleaning tasks. With its powerful laser beam concentrated on a minimal area, the Easy 2000AIR delivers durable, aesthetic, and deformation-free welds. The minimized heat-affected zone significantly reduces the risk of material distortion, making it an ideal solution even for delicate materials. Thanks to its lightweight design and compact dimensions, the SPARTUS Easy 2000AIR can be used even in field conditions, providing mobility and convenience for work in various locations.

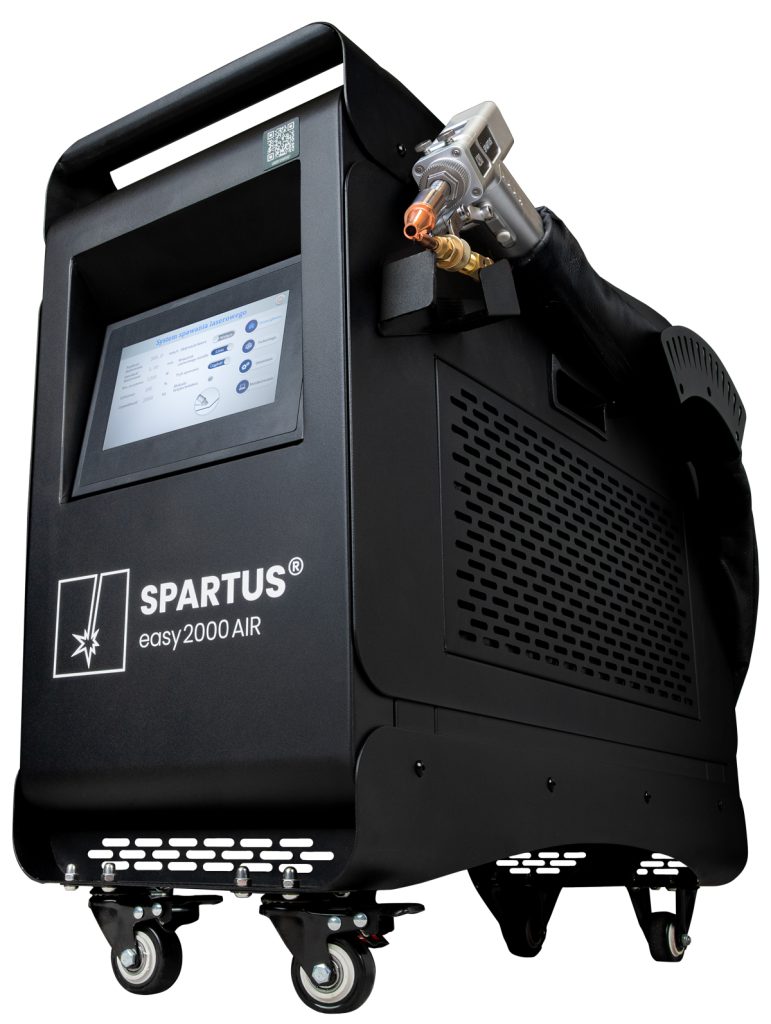

Laser Easy 2000Air - art

Advantages of Laser Welding


1 Wysoka precyzja

2 doskonała kontrola

1 Czyste spoiny


4 ograniczone odkształcanie

5 trwałe i wytrzymałe połączenie

6 Zoptymalizowany czas produkcji

Materials – Weldable

Spoiny

Laser welding surpasses traditional methods such as MIG or TIG, thanks to its exceptional precision and the ability to produce significantly smaller, microscopic welds.
This process minimizes the heat-affected zone on the material, preserving its properties and preventing deformations. As a result, laser technology is the ideal solution for joining even the smallest components that are difficult to weld using other methods.

Stainless steel6mm
Carbon steel5mm
Aluminum5mm

One Device – Multiple Functions

Spawanie laserowe

Welding

Laser welding is a technology that enables the creation of durable and aesthetic metal joints. The concentrated light beam makes it possible to achieve high-quality welds without the risk of deformation or changes in the material structure. This method is ideal for working with thin components and alloys with a high melting point. Thanks to the repeatability and stability of the process, laser welding is widely used in production that requires the highest precision.w produkcji wymagającej najwyższej dokładności.


Cięcie laserowe

Cutting

Laser cutting is a method that ensures precise shapes and smooth edges without the need for additional processing. The laser beam enables highly accurate cutting while minimizing heat influence and reducing the risk of distortions. This solution helps reduce waste and fully utilize the material, resulting in significant savings of raw resources. Laser cutting is ideal for mass production as well as for complex projects that demand the highest repeatability.


Czyszczenie laserowe

Cleaning

Laser cleaning is an innovative process that enables the removal of contaminants and coatings from material surfaces quickly and without contact. The laser beam effectively eliminates rust, oxides, paint, and industrial residues without damaging the underlying structure. The process is safe, environmentally friendly, and does not require the use of chemicals or additional tools. Laser cleaning perfectly prepares components for further processing, increasing the efficiency of the entire production cycle.

Głowica F280

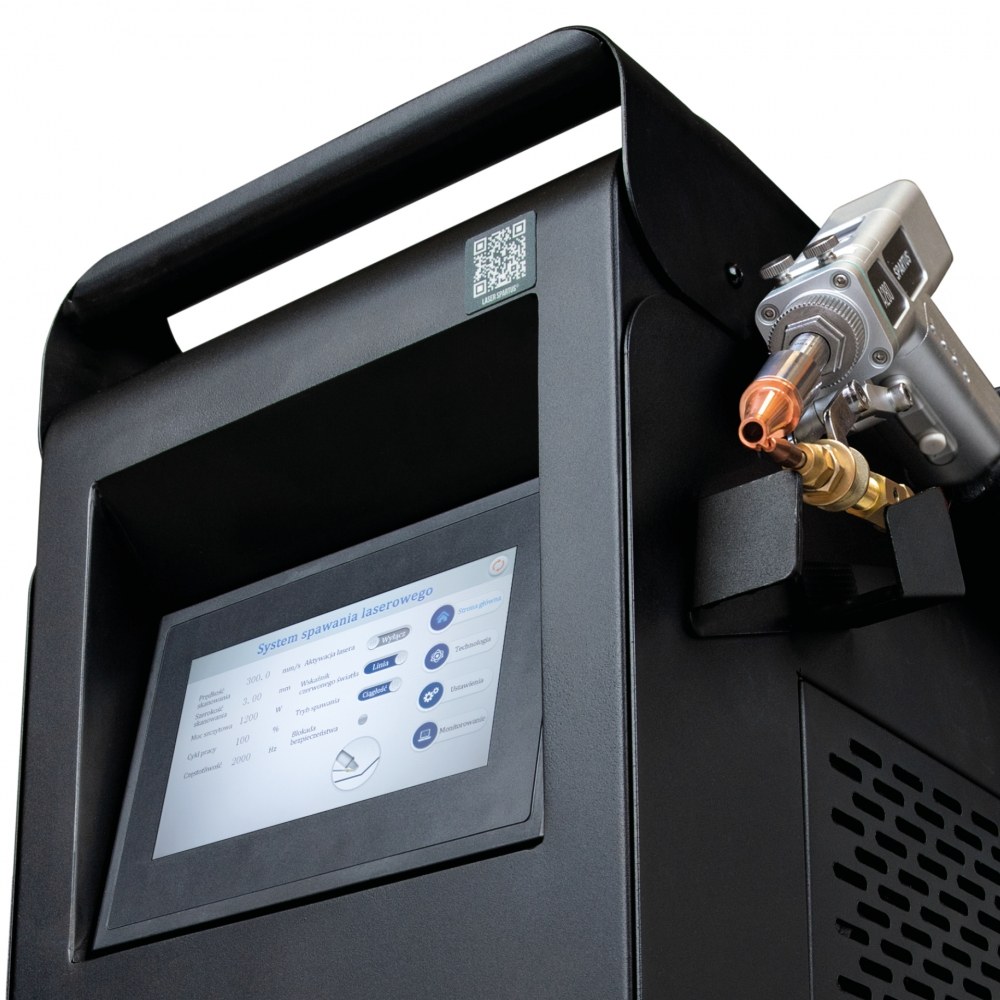

SPARTUS A280 LASER HEAD – PRECISION, RELIABILITY, AND CONTROL

The A280 laser head is equipped with an advanced real-time temperature monitoring system. A flashing red warning light indicates overheating, while a steady light signals other types of alerts, ensuring full control over the device’s operation.

An independent mode-switch button allows for quick and convenient toggling between pre-programmed processes. The digital controller guarantees high resistance to interference as well as stable and reliable performance under all conditions.

Thanks to its improved optical design, the head ensures high weld quality, minimal distortions, and deep penetration, resulting in excellent welding outcomes.

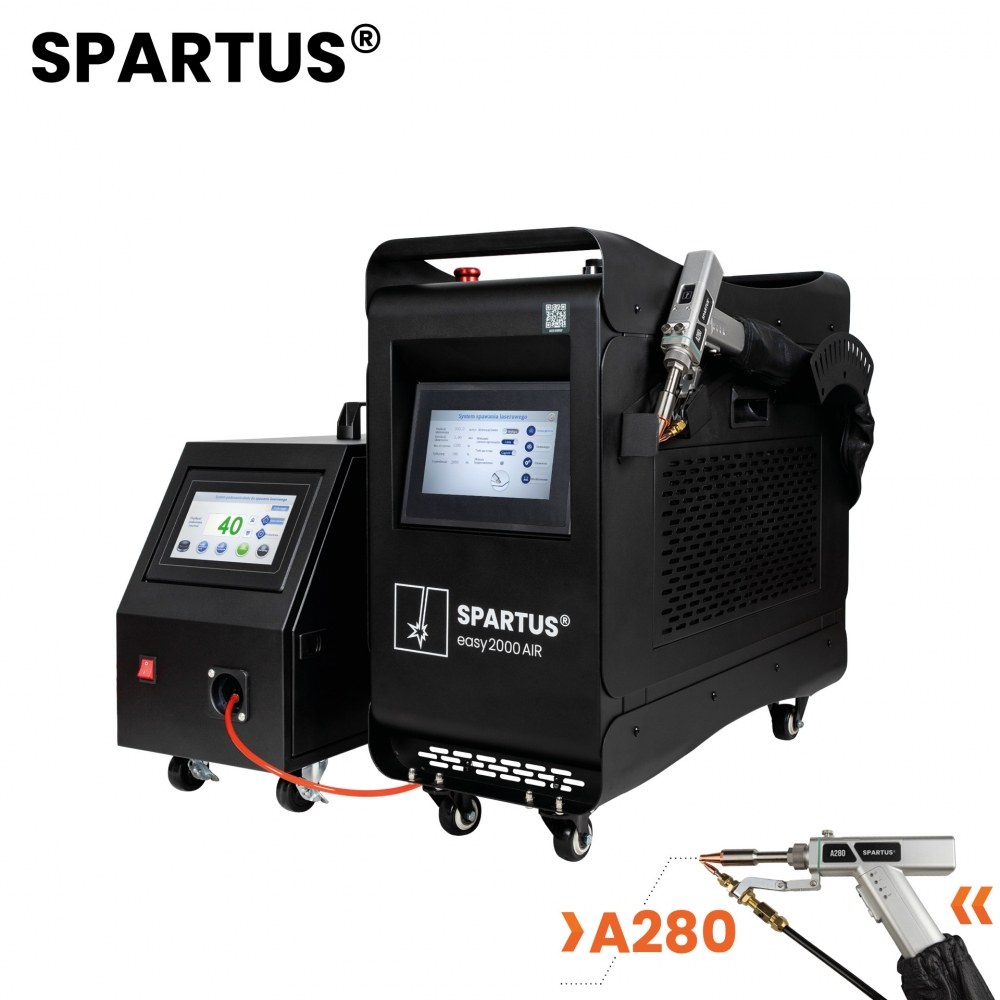

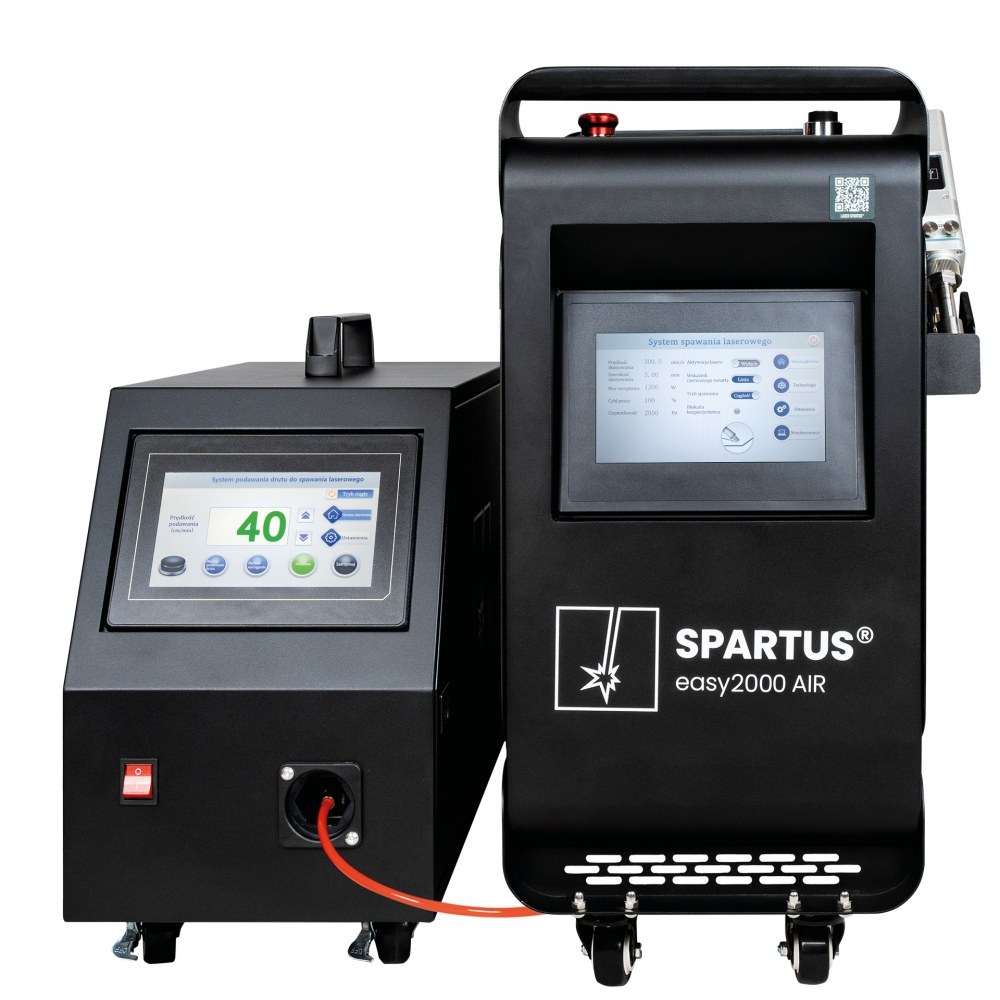

WIRE FEEDER – Precision and Welding Process Automation

The wire feeder of the SPARTUS Easy 2000AIR laser welder precisely delivers the filler material to the welding area. This is crucial for controlling welding parameters, improving weld quality, and increasing process efficiency. It automates wire feeding, allowing the operator to focus on supervising the welding process. As a result, the wire feeder is an essential tool in laser welding, particularly in industrial production.

Laser EASY12000AIR
