SPARTUS HERMES D16 – the precise foundation of your work.
The SPARTUS HERMES D16 welding tables are precise and durable foundations for welding, assembly, and metalworking. Made of high-strength S355J2+N steel and equipped with a Ø16 mm hole system, they ensure maximum stability, accuracy, and working comfort.
Welded S355J2+N steel top – guaranteed durability
The core of every SPARTUS HERMES D16 table is a top welded from high-quality structural steel S355J2+N, known for its outstanding resistance to deformation and mechanical damage. Thanks to precise machining technology, the table top features flatness accuracy of 0.1 mm/㎡, ensuring a perfectly even working surface even under heavy loads.
This solution guarantees full stability when positioning components and maximum welding precision – regardless of the size of the structure.
The 12–14 mm thick top offers an ideal balance between massiveness and precision. This well-chosen design ensures resistance to impacts, high temperatures, and deformation, maintaining perfect flatness for years of operation.

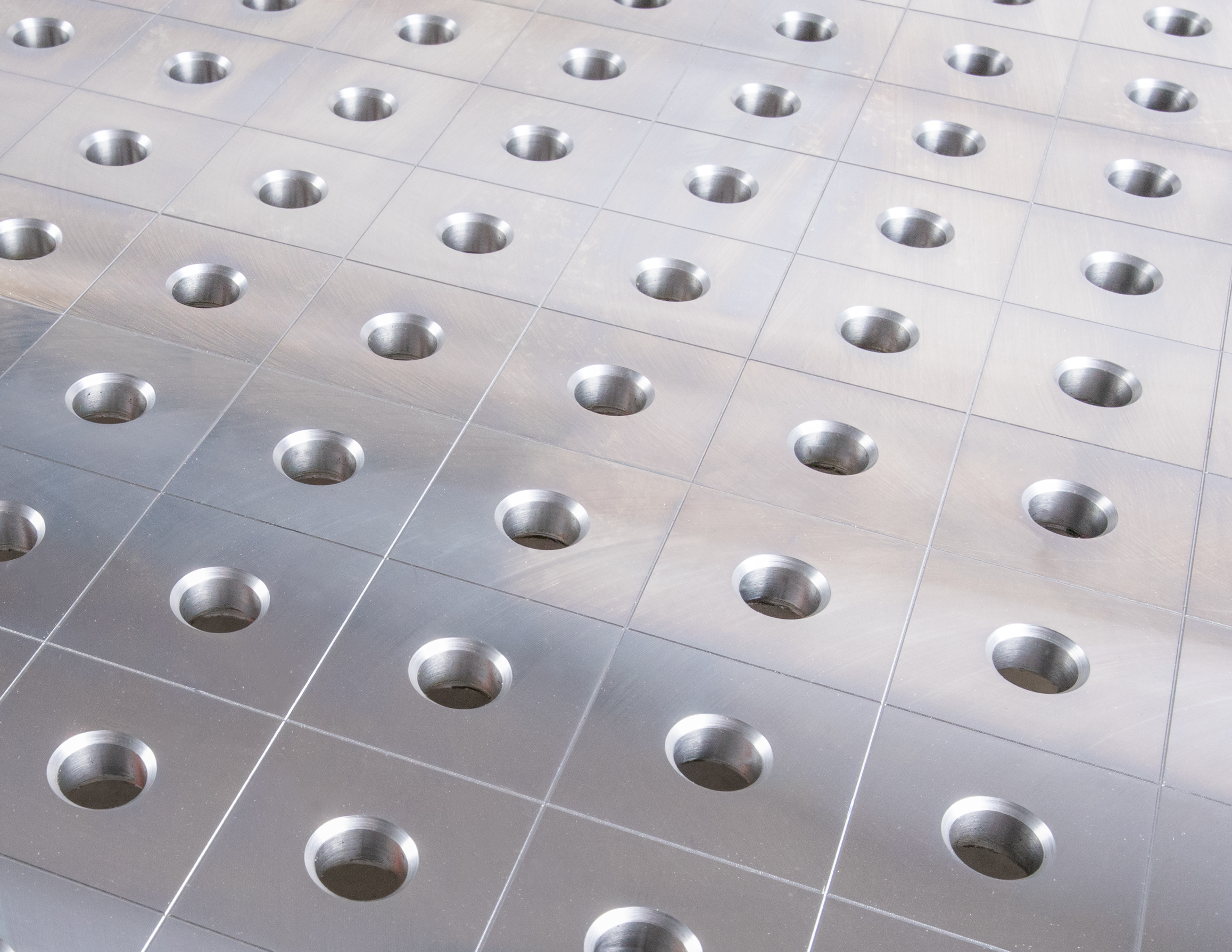

Drilled and milled Ø16 mm hole system
The working surface is equipped with precisely drilled and milled holes with a diameter of 16 mm, arranged in a regular D16 system grid. Each hole is made with a tolerance of +0.05 mm, and the hole spacing is 50 mm.
This high level of precision ensures full compatibility with system accessories and allows for quick, repeatable, and stable clamping of elements using clamps, angle brackets, and stops.ątowników i ograniczników.

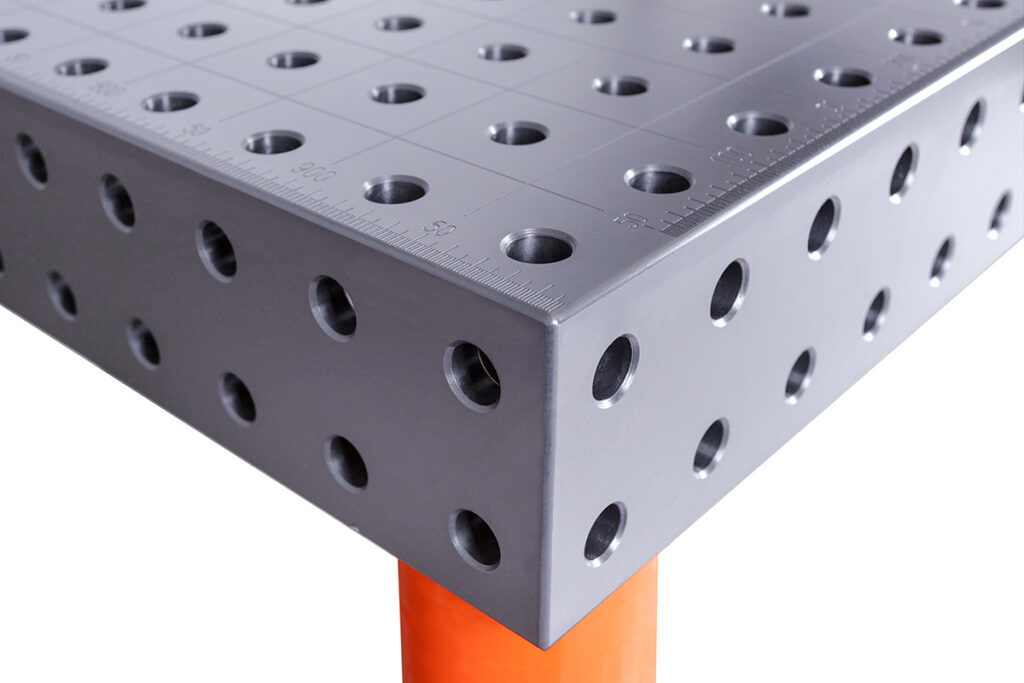

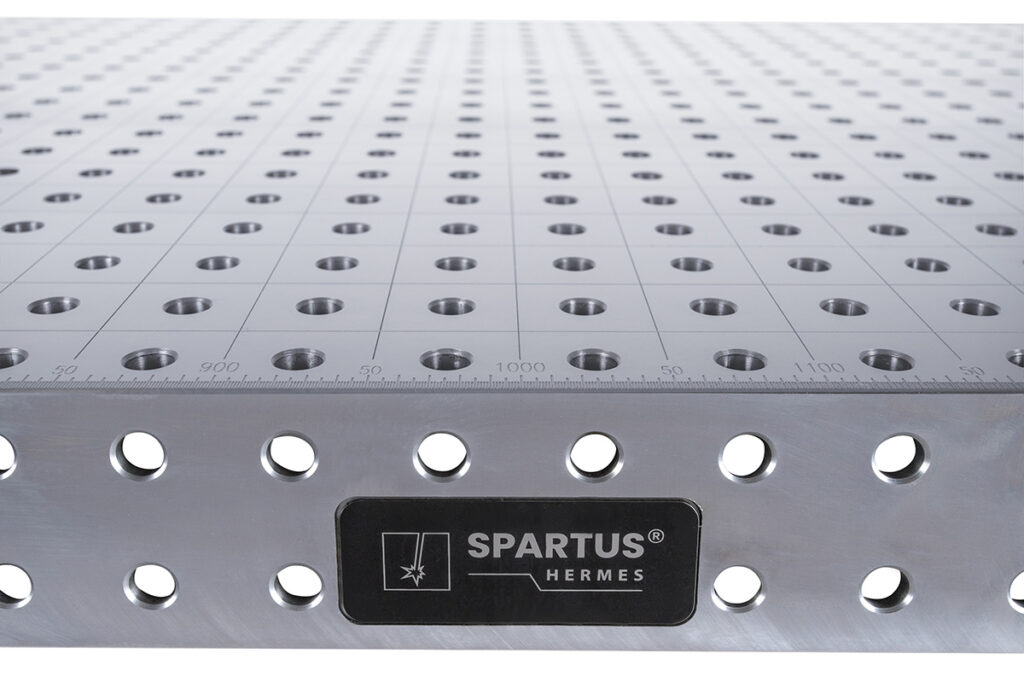

Millimeter scale – fast and accurate positioning
The working surface features a clear millimeter scale that makes it easier to precisely position workpieces and fixtures. This practical tool increases repeatability and shortens setup time.
3D modular side – flexible workstation configurations
The SPARTUS HERMES D16 table is based on a system of 3D modular sides, allowing the working surface to be expanded in any direction. This makes it easy to increase the working area or adjust the table’s shape to meet specific project requirements – from precise details to large steel structures.

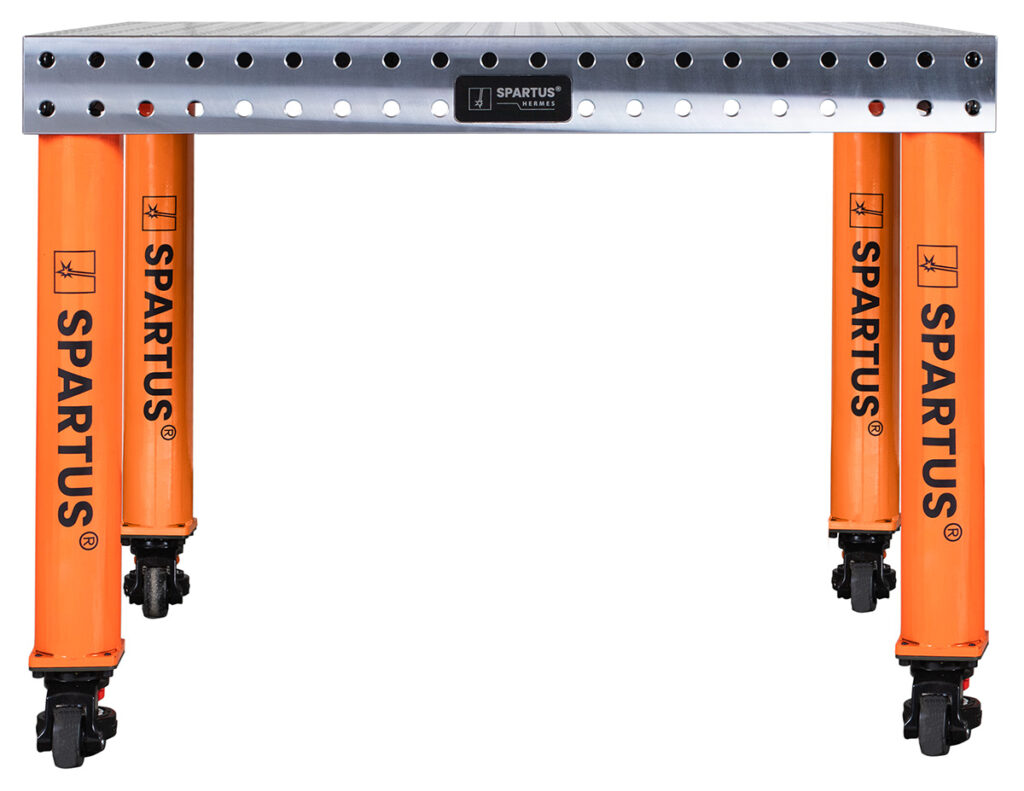

Stable D16 welding table legs with wheels and brakes – five length options
SPARTUS D16 tables are available with legs in five different lengths, allowing you to choose the optimal height for your specific type of work.
| Leg length | Table height |
|---|---|
| 730mm | 830mm |
| 650mm | 750mm |
| 450mm | 550mm |
| 350mm | 450mm |
| 200mm | 300mm |
SPARTUS D16 welding tables are equipped with legs featuring a wheel system and an integrated parking brake, allowing easy movement of the table within the workspace.
Once positioned, the mechanical brake with rotation and movement lock enables the table to be securely “parked,” ensuring full rigidity during welding.
This solution combines mobility and operational safety, allowing the table to be freely moved and then quickly locked in the working position.
Applications of SPARTUS D16 welding tables
SPARTUS D16 welding tables are used in:
- structural welding,
- assembly and processing of steel components,
- production workshops,
- assembly lines,
- training and educational facilities.
SPARTUS D16 – the precision base for your work
By choosing a SPARTUS welding table in the D16 system, you invest in accuracy, durability, and reliability. It’s a solution that enhances every stage of the welding and assembly process, ensuring repeatability and the highest comfort of work.

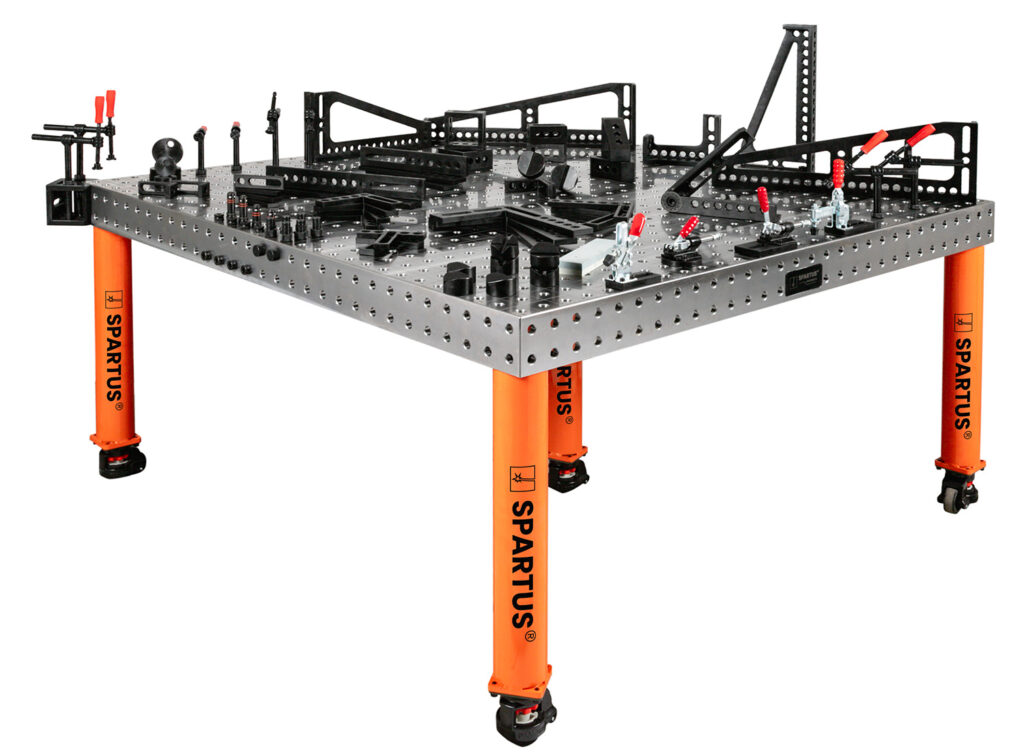

Accessories for SPARTUS D16 welding tables
SPARTUS offers a wide range of accessories for D16 welding tables that allow you to fully utilize your workstation’s potential. We offer both individual components and complete accessory kits tailored to user needs. The range includes welding clamps, angle brackets, prisms, locating pins, sockets, stoppers, and clamping blocks – all compatible with the D16 hole system. With these accessories, you can easily and precisely secure workpieces, expand your working area, and increase accuracy and efficiency when working with the SPARTUS D16 table.
Technical details
| Size of the work surface | 1000x500x100mm | 1000x800x100mm | 1000x1000x100mm | 1200x800x100mm | 1200x1000x100mm | 1200x1200x100mm |
| Made | welded | welded | welded | welded | welded | welded |
| Material | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 |
| Table top thickness | 12-14mm | 12-14mm | 12-14mm | 12-14mm | 12-14mm | 12-14mm |
| Table horizontal precision | 0.1 mm/m² | 0.1 mm/m² | 0.1 mm/m² | 0.1 mm/m² | 0.1 mm/m² | 0.1 mm/m² |
| Standard | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) |
| Carrying capacity | 1000kg | 1000kg | 1500kg | 1500kg | 1500kg | 1500kg |
| Number of legs | 4szt. | 4szt. | 4szt. | 4szt. | 4szt. | 4szt. |
| Total weight | 80kg | 120kg | 150kg | 150kg | 180kg | 180kg |
| Size of the work surface | 1500x600x100mm | 1500x1000x100mm | 1500x1500x100mm | 2000x1000x100mm | 2400x1200x100mm |
| Made | welded | welded | welded | welded | welded |
| Material | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 | stal S355J2+N wg normy EN 10025-2 |
| Table top thickness | 12-14mm | 12-14mm | 12-14mm | 12-14mm | 12-14mm |
| Table horizontal precision | 0.1 mm/m² | 0.1 mm/m² | 0.1 mm/m² | 0.1 mm/m² | 0.1 mm/m² |
| Standard | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) | D16 (drilled and milled holes 16mm diameter) |
| Carrying capacity | 1500kg | 2000kg | 2000kg | 2000kg | 2000kg |
| Number of legs | 4szt. | 4szt. | 4szt. | 4szt. | 4szt. |
| Total weight | 130kg | 220kg | 320kg | 280kg | 380kg |
