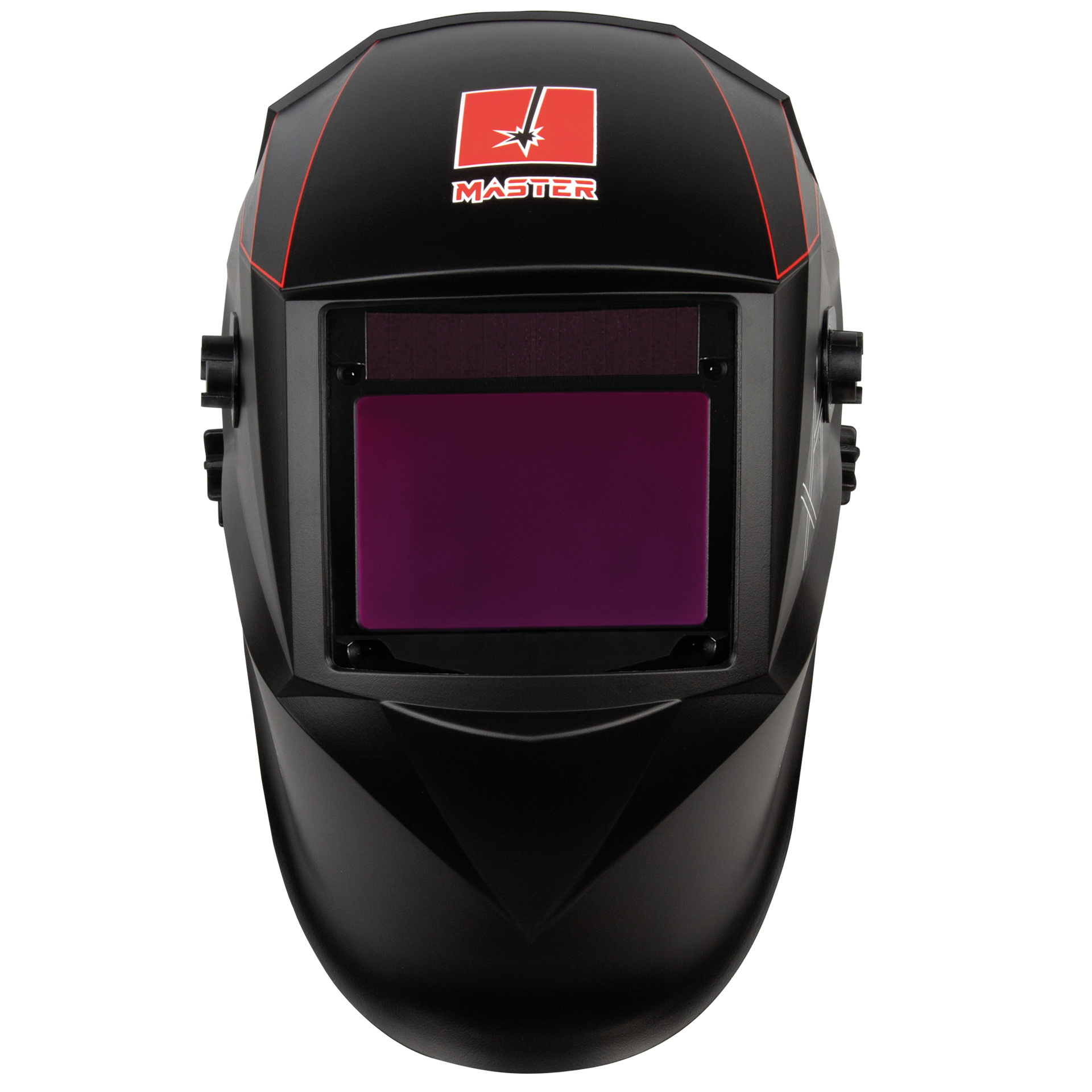

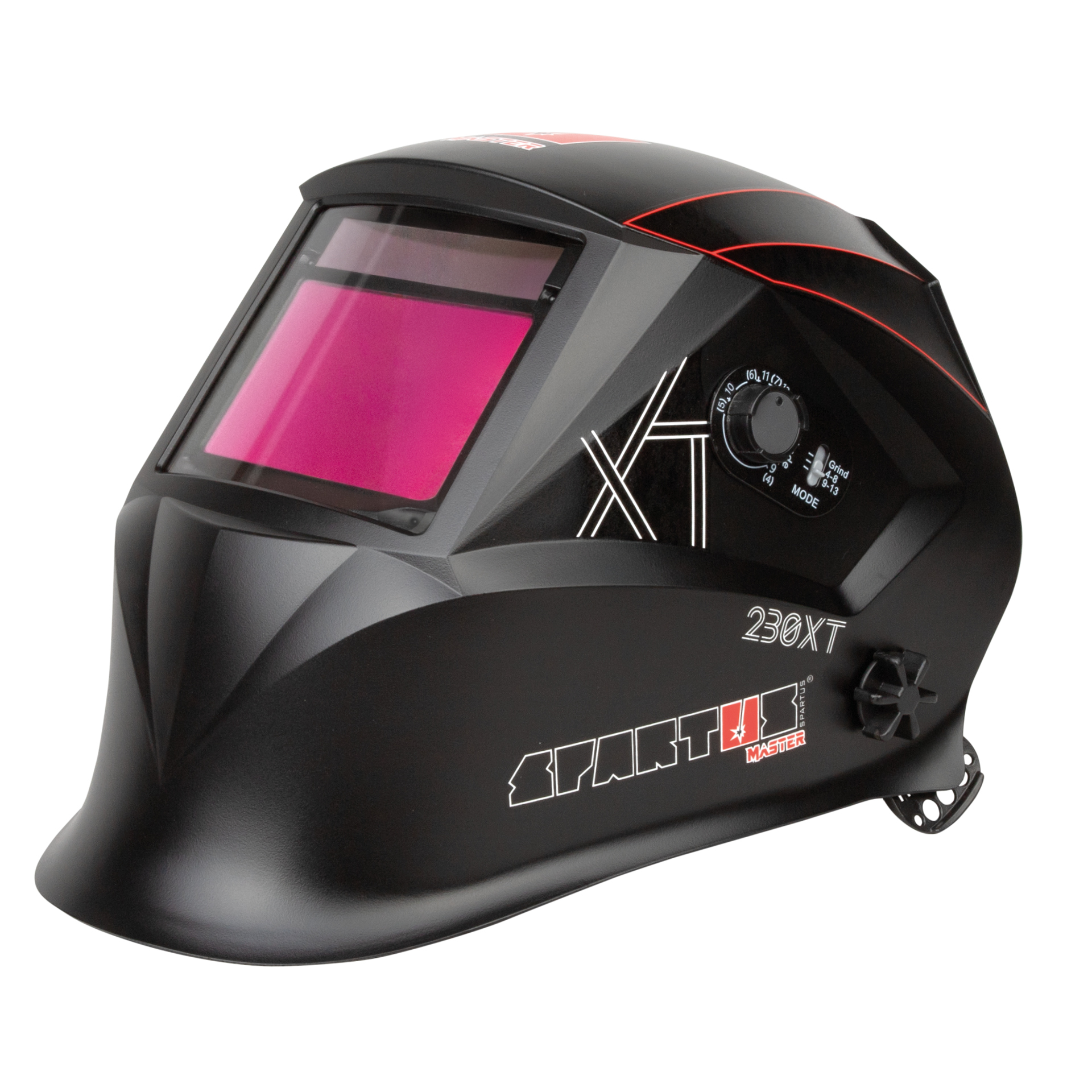

Spartus Master 230XT (true color) welding helmet

Technical parameter

Usage MIG/MAG | TIG | MMA arc welding

Active field of view100 x 65mm

Filter size122 x 125 x 9mm

Filter optical class1 / 1 / 1 / 1

Sensors4

Shading (standby)DIN 4

Variable welding shades (operating)DIN 4 - 8 or DIN 9 - 13

UV/IR protection degreeup to DIN16

Light to dark switching time1/30 000s

Delay control of light to dark switching time0.25 - 0.8s

Power supply battery and solar cells

Grindingyes

Adjustment knob and switch external

Weight480g

Catalog card (pdf)

080-10-230XT

Realistic colors and maximum control over your work

True Color technology for even better visibility

The SPARTUS Master 230XT is an advanced welding helmet equipped with a modern True Color filter that delivers a clear image in natural colors. This allows the welder to see details more accurately, resulting in greater precision and control during welding. The helmet is ideal for use with TIG, MIG/MAG, and MMA methods and also features a dedicated grinding mode.

High sensitivity and full filter adjustability

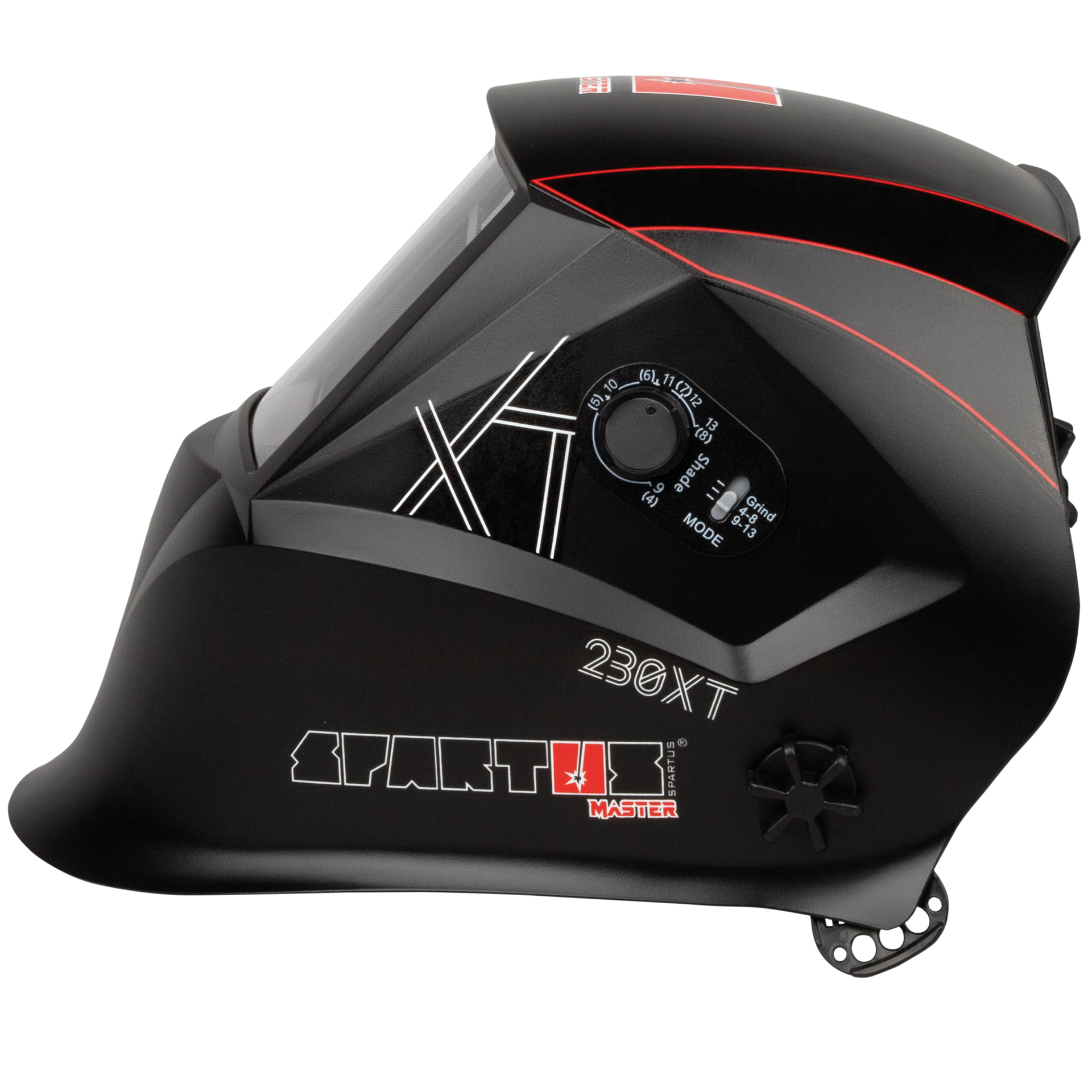

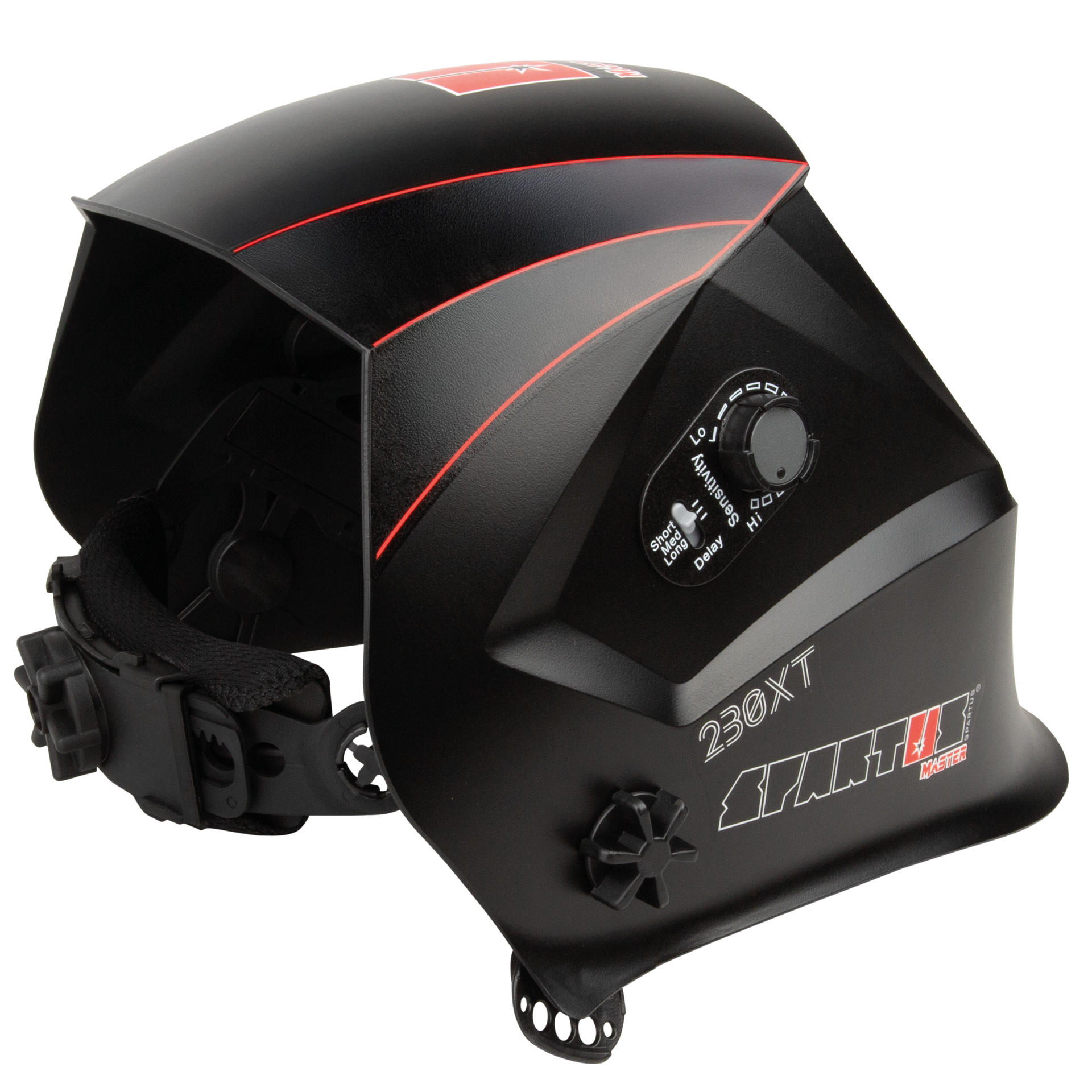

The auto-darkening filter with an optical class of 1/1/1/1, combined with a large 100×65 mm viewing area, ensures high working comfort and safety. Four sensitive sensors provide instant response during welding—even when using low currents. Using the external controls, the user can smoothly adjust the shade level, delay time, and sensitivity, as well as activate the filter test function.

Comfort and reliability for long hours of work

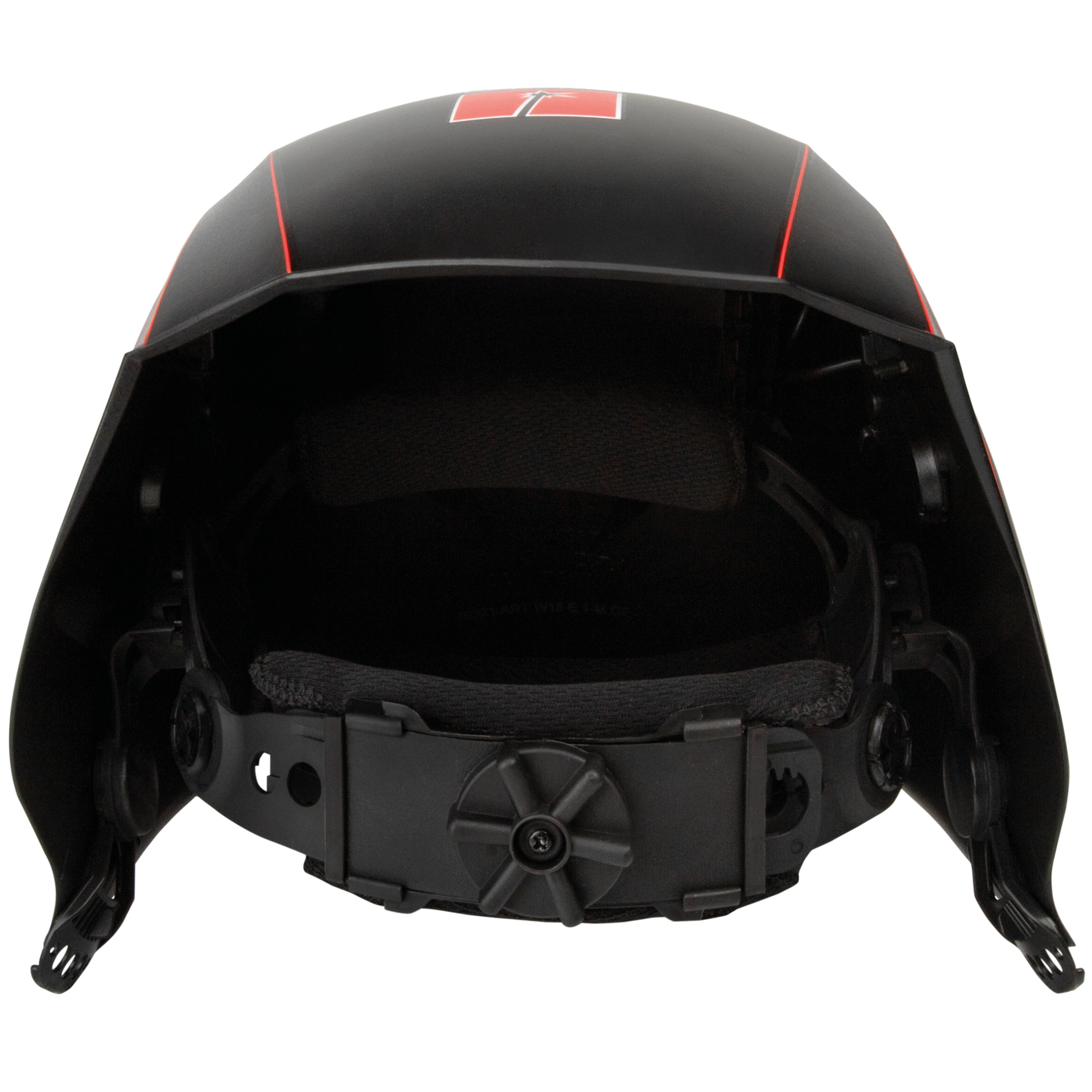

With its lightweight design (480g) and ergonomically engineered headgear, the Master 230XT helmet provides excellent comfort even during extended use. The ability to fine-tune the fit and adjust the distance between the filter and the face ensures a stable position without putting strain on the neck.

Additional protection with helmet-mounted version

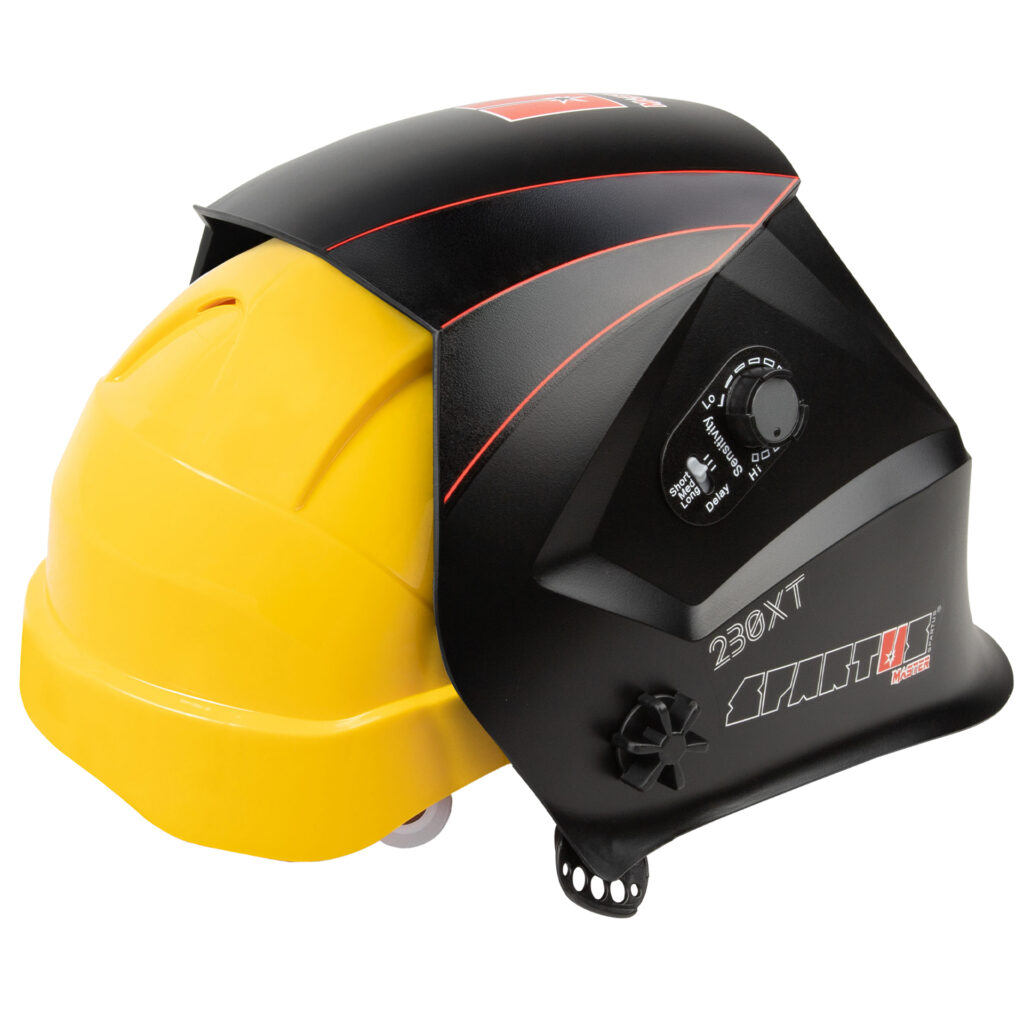

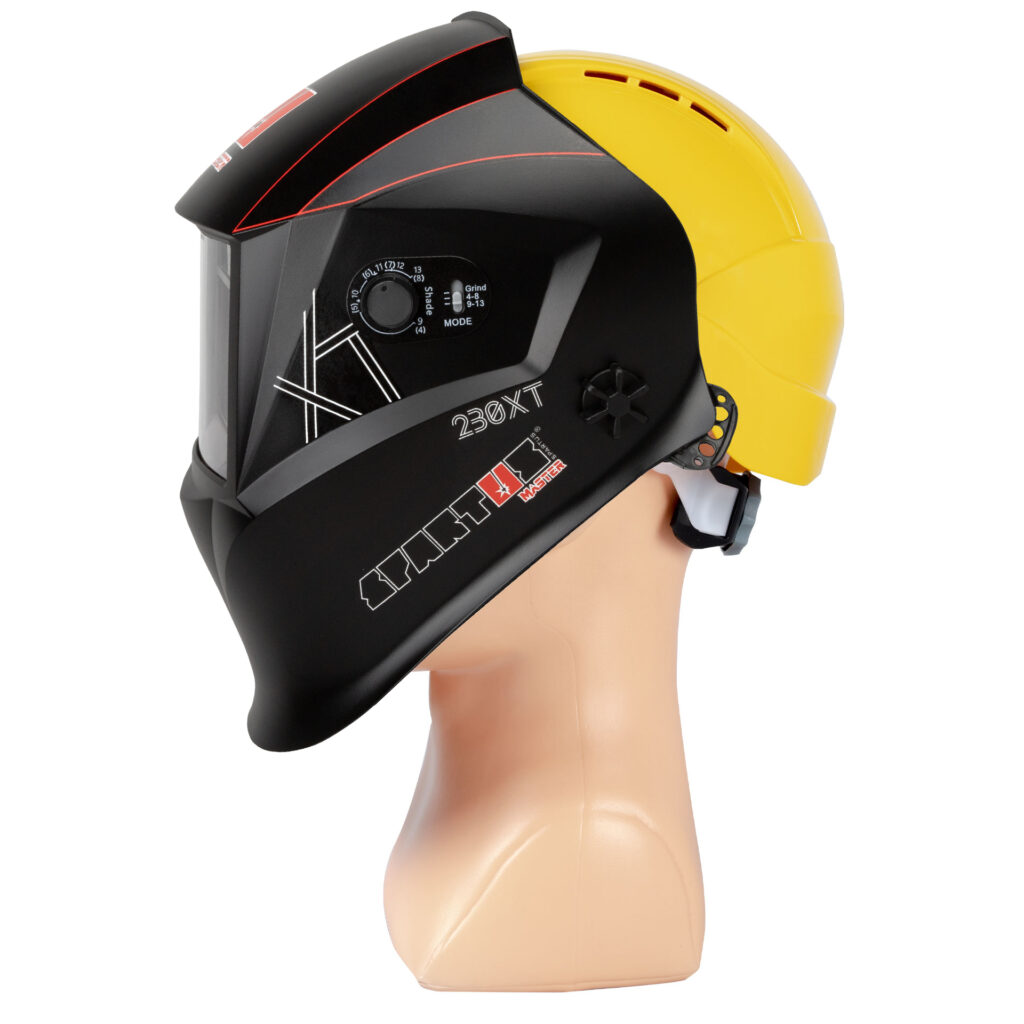

For situations requiring a higher level of safety—such as working at heights, inside tanks, or on industrial installations—the SPARTUS Master 230XT is available in a version with a safety helmet. A dedicated adapter connects the welding helmet to the hard hat, meeting strict health and safety requirements while ensuring comfort and reliability in demanding conditions.
