Technical parameter

Horizontal loading capacity100kg

Vertical loading capacity50kg

Working table tilting angle0 - 90º

Rotation speed0.5 -5 r/min

Plate diameter400mm

Input~1× 230V ± 10% 50 / 60 Hz

Weight70kg

Applicable lathe chuckSPARTUS 200P / 201P / 300P / 301P

SP020-00-100P

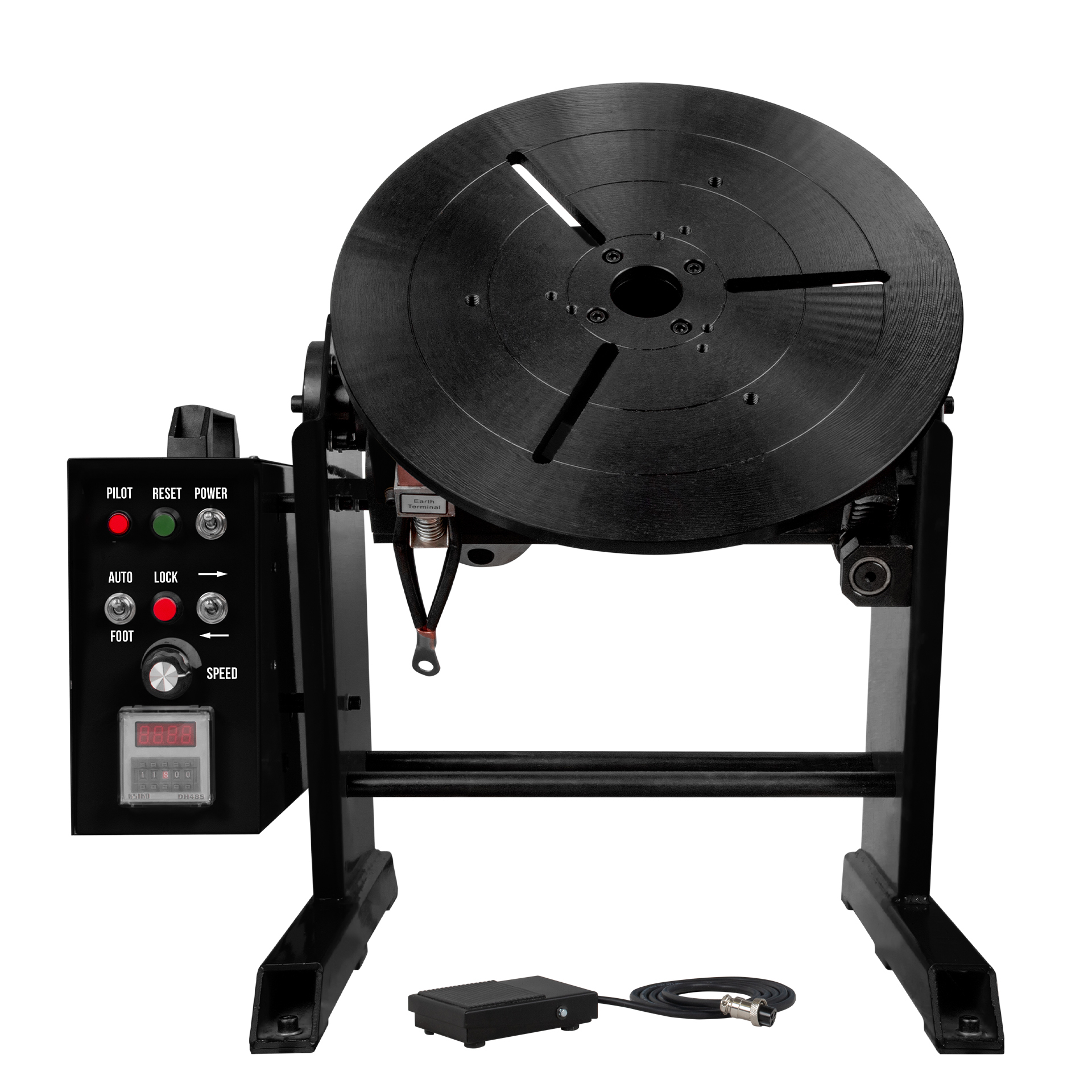

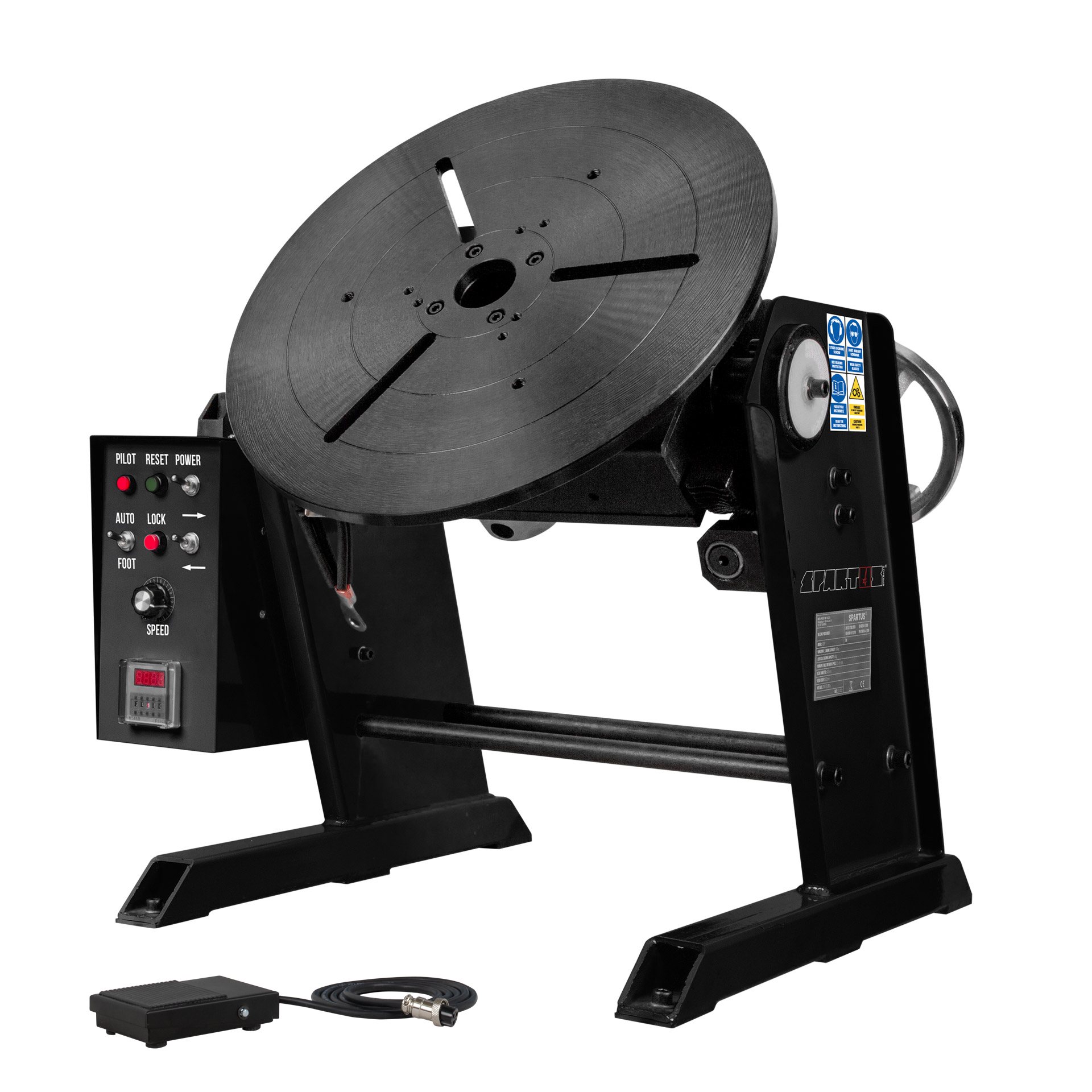

The SPARTUS 100P welding positioner is a modern device that supports the welding process, enabling precise rotation and positioning of elements with a maximum load capacity of 100kg. Powered by a single-phase 230V supply, it ensures convenient and versatile operation in various workshop conditions. Smooth rotation speed adjustment and the ability to change the rotation direction allow for optimal positioning of the workpiece, increasing welder comfort and improving the quality of welded joints. A robust construction and simple control panel make the SPARTUS positioner a reliable tool for both series production and single-piece work.
