Technical parameter

Input~1× 230V ± 10% 50 / 60 Hz

MMA welding current10 - 200A

MMA duty cycle60%

No-load voltage82V

VRDyes

TIG Liftyes

Current consumpiton42A

Power factor (cosφ)0.76

Efficiency η85%

Insulation classH

Protection classIP21S

Weight4kg

Dimensions270 x 130 x 200mm

COMPACT, PORTABLE, IGBT INVERTER

SPARTUS EasyARC 205 is a compact inverter welder based on IGBT technology. Powered from a single-phase 230V supply, it offers an output range of 10–200A and enables welding with coated electrodes (MMA) as well as TIG Lift DC. With its handy dimensions and transport case, it is an excellent choice for fieldwork, workshop use, or repair tasks.

Spawarka elektrodowa Spartus EasyARC205

MMA welding

The EasyARC 205 allows welding with coated electrodes up to 4.0 mm in diameter. Supporting functions such as Hot Start and Arc Force facilitate arc ignition and stability, resulting in improved weld quality. The unit provides a 60% duty cycle at maximum current, making it suitable for demanding tasks.

In addition to MMA welding, the EasyARC 205 also enables TIG Lift DC welding, where the arc is initiated by touch. This is a practical solution for welding carbon and alloy steels both in the workshop and on-site.

Control

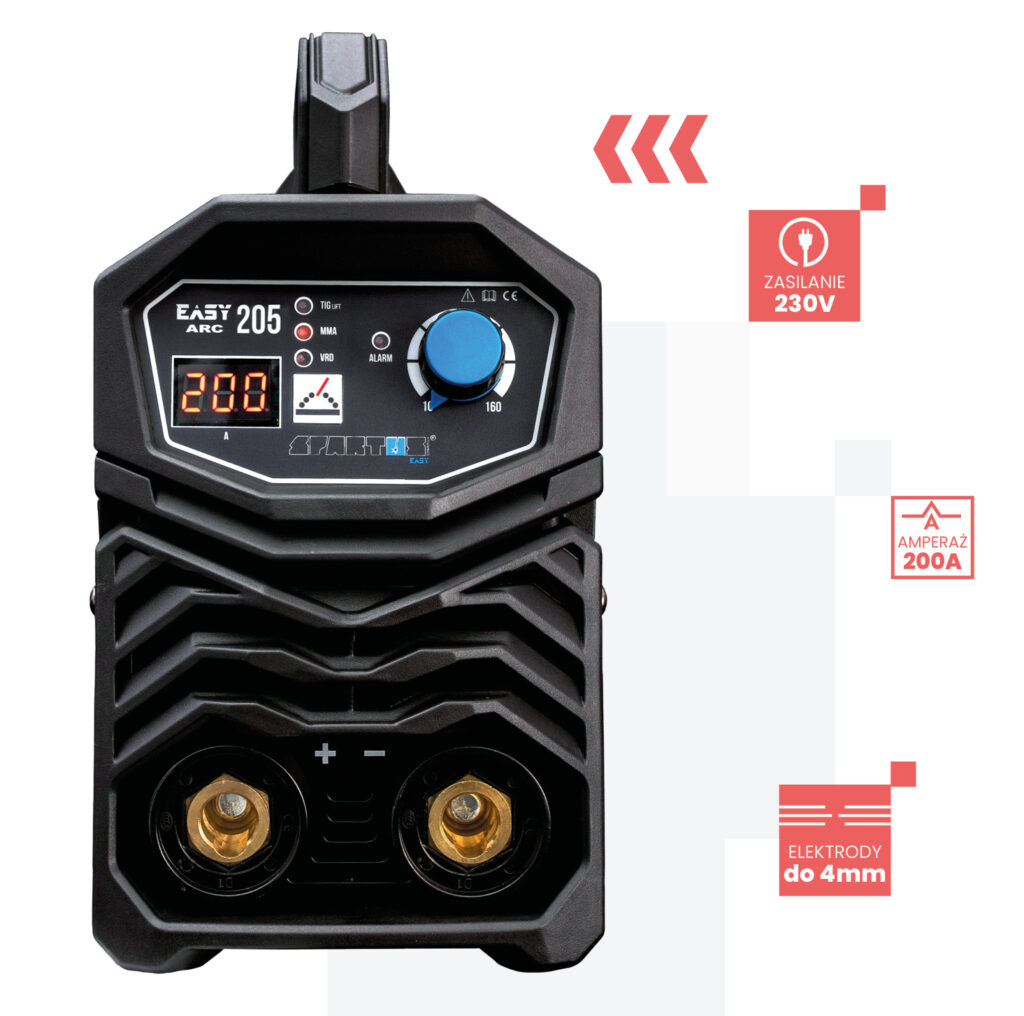

The digital control panel features a parameter display and a single adjustment knob. A mode switch allows quick selection between MMA and TIG Lift, while the compact control layout ensures convenient operation even for less experienced users.

Construction

Weighing only 4 kg, the EasyARC 205 has compact dimensions (270 × 130 × 200 mm) that fit perfectly into its sturdy transport case. The IP21S-rated housing protects the unit against overheating and ensures reliability in everyday use.

Spawarka elektrodowa Spartus EasyARC205

EQUIPMENT

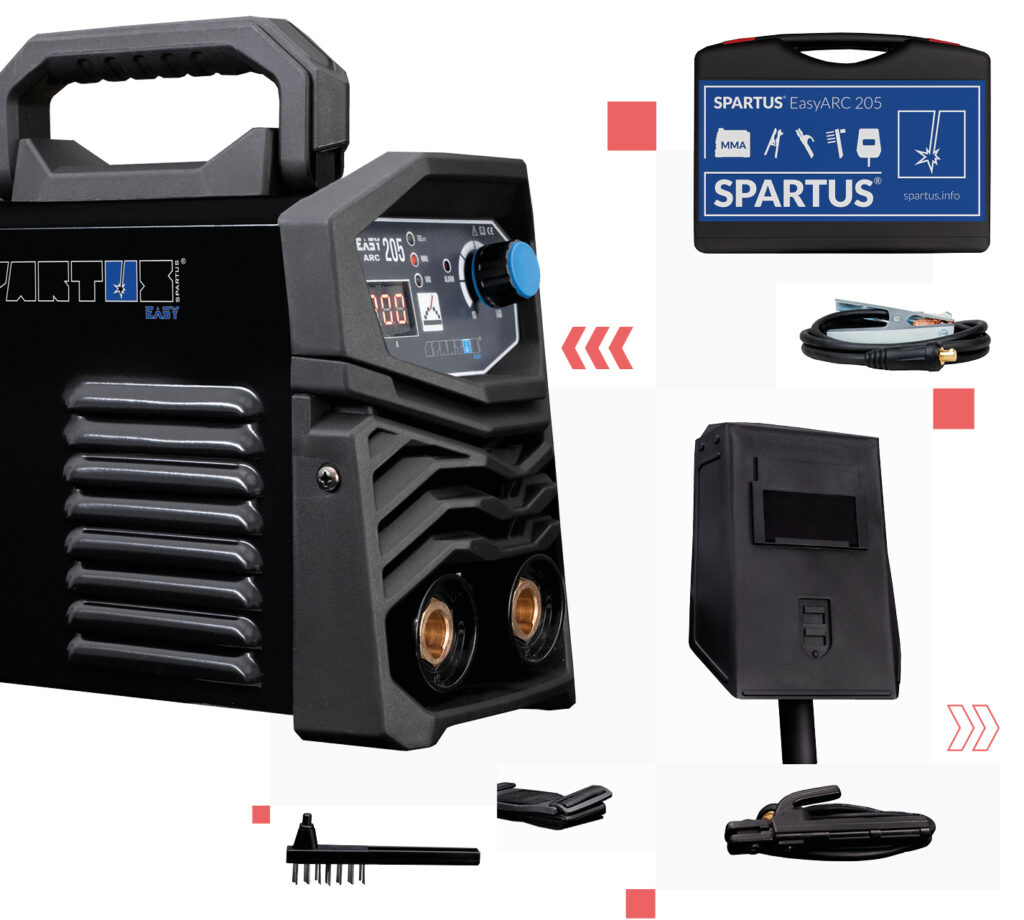

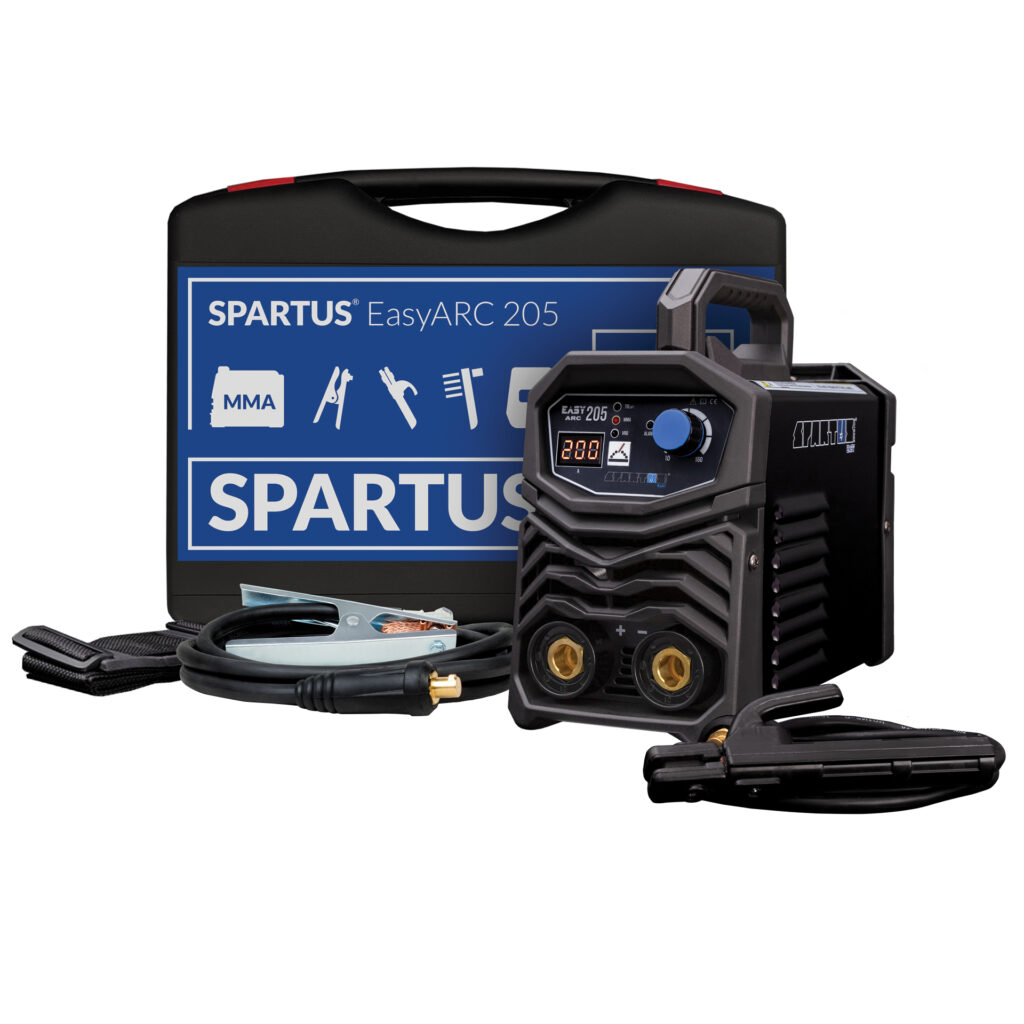

Welders from the SPARTUS Easy series are sold exclusively as complete sets, including all the essential components needed to start working.

The package includes:
• EasyARC 205
• electrode holder
• work clamp
• box
• shield
• hammer with a brush
• shoulder strap
• user’s manual

SPARTUS EasyARC 205 is a compact, portable MMA welder with TIG Lift DC capability. Its lightweight design, easy operation, and power output up to 200A make it an excellent choice for light industry, farming, repair work, and workshop applications.
