SPARTUS Laser Cutters – precision for demanding production
SPARTUS fibre laser cutters are advanced cutting systems designed for modern manufacturing environments where efficiency, quality and repeatability are crucial. The Apollo series, built on leading Raycus, Raytools, PEK and Atlanta components, provides a stable cutting process, high structural rigidity and reliable multi-shift operation. It is a solution created for industry, automation, contract manufacturing and companies requiring precision in every detail.

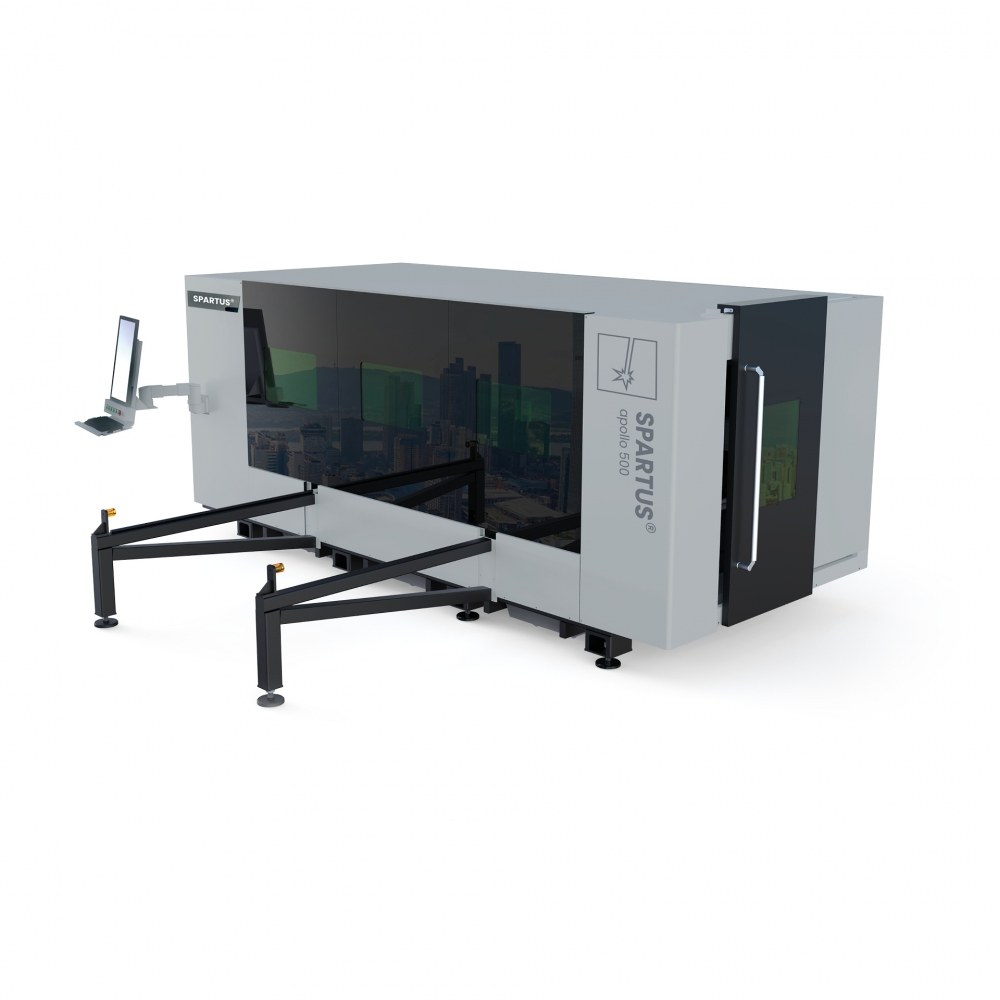

SPARTUS Apollo 500 – compact 3 kW laser cutter for precision production
The Apollo 500 is engineered for precise cutting of thin and medium-thickness materials. Its gantry construction with rack-and-pinion drive, aerospace-grade cast aluminium beam and Raytools BM110 autofocus head ensure high dynamics and stable performance. The enclosed cutting chamber, zoned fume extraction and a 40 kVA voltage stabiliser provide safety, clean operation and reliable electronics even in unstable power conditions.

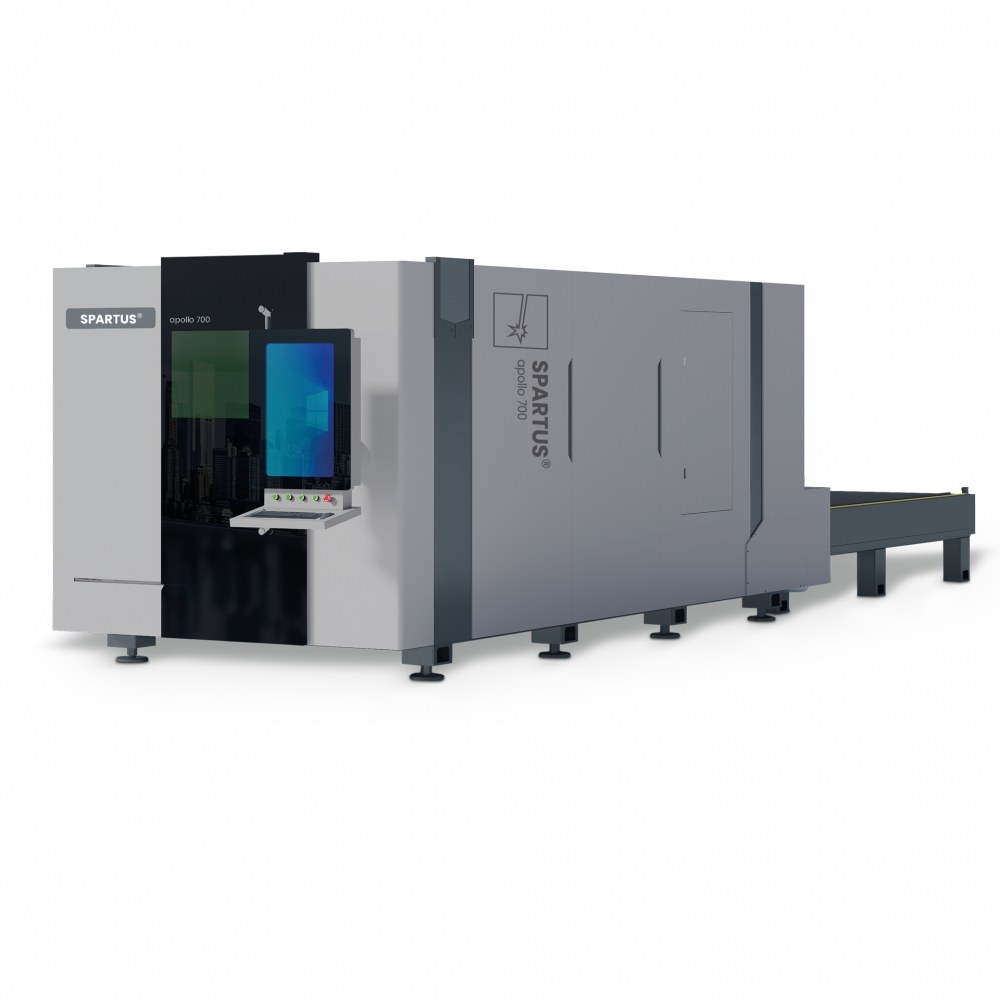

SPARTUS Apollo 700 – industrial 6 kW laser cutter for demanding applications
The Apollo 700 is a fully industrial 6 kW fibre laser cutter equipped with the intelligent Raytools BM06K head featuring cooling, temperature monitoring and a four-lens protection system. Automated table exchange, a multi-stage reinforced frame and premium drives (PEK, Atlanta, Leitesen) deliver maximum productivity and excellent edge quality even with thick materials. The machine meets rigorous safety standards, featuring a fully enclosed body and zoned dust extraction.
Smart control and full cutting process automation
Both cutters operate on the Raytools X3S system, integrating CAD, CAM and NEST functions into one environment. The system enables intelligent correction of drawing errors, toolpath optimisation, advanced production planning and statistics tracking. This gives operators not just a cutting machine, but a fully integrated production system optimised for continuous operation.
Frequently
asked questions
What materials can be cut with SPARTUS Apollo laser cutters?
Carbon steel, stainless steel, aluminium, brass and other conductive metals.
How does autofocus work in the laser cutting head?
The Raytools autofocus system automatically adjusts the focal position to the material type and thickness, ensuring clean edges, no burn marks and minimal post-processing.
What safety features do SPARTUS cutters have?
A fully enclosed design, zoned fume extraction, head temperature monitoring, limit sensors, camera systems, automatic lubrication and voltage stabilisers.
Is the Raytools X3S control system compatible with CAD/CAM?
Yes. X3S integrates CAD, CAM and NEST in a single platform, enabling automatic error correction, optimal toolpaths, micro-joints and pierce optimisation.
