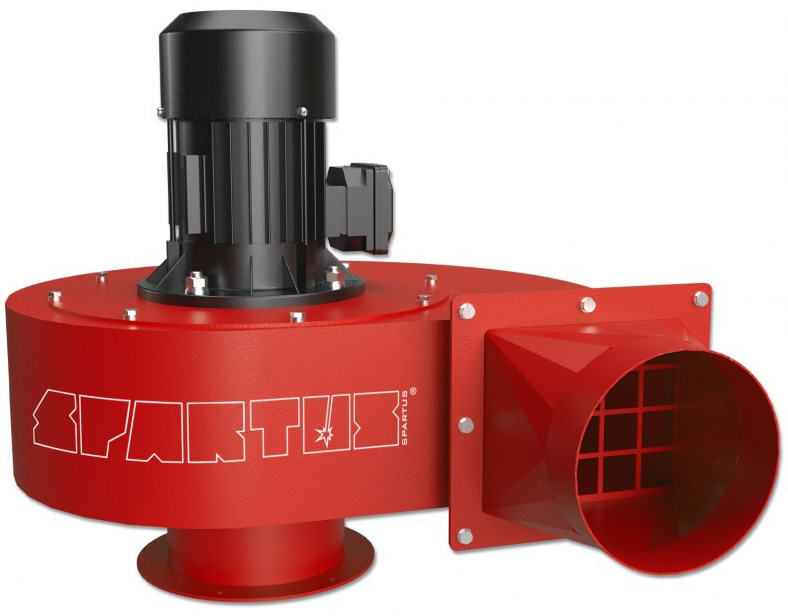

SPARTUS exhaust fans are designed to work with extraction devices and systems that remove contaminated air. Their aluminium rotors placed in metal coverings ensure high flow efficiency and a spark-free design. SPARTUS fans are intended for transporting non-explosive and chemically non-aggressive gases at temperatures up to 40°C. These devices excel at removing smoke or dust, especially in universal localized extraction systems, with retractable exhaust duct mechanisms or slotted duct extracts.

T075

Inlet diameter160mm
Outlet diameter160mm
Flow1550m³/h
Noise level77 dB(A)
Power0.75kW
Rotation speed2800obr/min
Protection classIP54
Input~3× 400V ± 10% 50 / 60 Hz
Weight30kg
CodeSP030-99-T075

T110

Inlet diameter160mm
Outlet diameter200mm
Flow1900m³/h
Noise level79 dB(A)
Power1,1kW
Rotation speed2800obr/min
Protection classIP54
Input~3× 400V ± 10% 50 / 60 Hz
Weight40kg
CodeSP030-99-T110

T220

Inlet diameter200mm
Outlet diameter200mm
Flow3000m³/h
Noise level80 dB(A)
Power2,2kW
Rotation speed2800obr/min
Protection classIP54
Input~3× 400V ± 10% 50 / 60 Hz
Weight50kg
CodeSP030-99-T220
