modern synergic welder for every workshop
SPARTUS EasyMIG 225 to nowoczesny, inwertorowy półautomat spawalniczy MIG/MAG, łączący wydajność przemysłowych źródeł z mobilnością kompaktowej obudowy. Dzięki zaawansowanej technologii IGBT i synergii Easy, urządzenie zapewnia stabilny łuk, wysoką jakość spoin i wyjątkowo prostą obsługę w każdych warunkach.
MIG/MAG Welding
The EasyMIG 225 enables welding in inert and active shielding gases (MIG/MAG) as well as flux-cored wire (FCAW) after polarity reversal. The machine features synergic programs for steel wires with diameters of 0.6 / 0.8 / 1.0 mm, greatly simplifying parameter adjustment and ensuring perfect welding results.
Inductance regulation allows control over bead width and penetration depth, while the Slow Feed function provides a smooth wire start – especially useful at high currents.
A 60% duty cycle at a maximum current of 220 A ensures comfortable welding of thick steel components. The built-in two-roll wire feeder guarantees stable feeding of steel, stainless steel, and aluminum wire.
MIG/MAG Functions:
- Work modes: 2T / 4T,
- Inductance adjustment,
- Easy Synergy programs,
- Wire feed test,
- Polarity reversal (gasless welding).
MMA and TIG Lift Welding
The EasyMIG 225 also supports coated electrode welding (MMA) and TIG Lift welding with arc ignition by touch.
Functions such as Hot Start, Arc Force, and VRD make electrode ignition easier, stabilize the arc in forced positions, and improve work safety.
The MMA welding current range of 10–200 A ensures full control when using various electrode types.

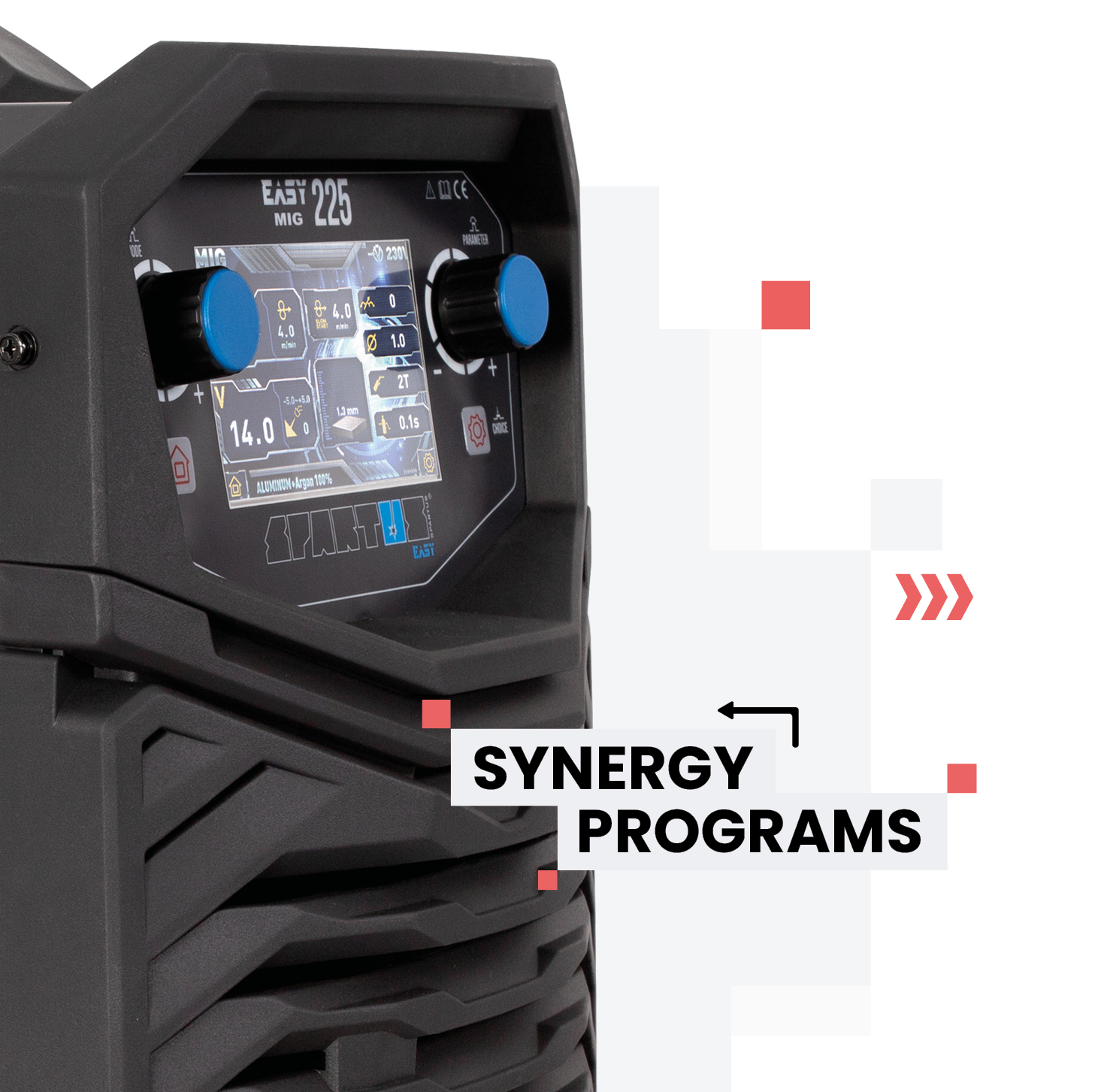

Programy synergiczne
SPARTUS EasyMIG 225 został wyposażony w zintegrowane programy synergiczne, które inteligentnie dopasowują parametry pracy do używanego drutu i gazu osłonowego. Funkcja ta znacząco skraca czas konfiguracji, zapewniając powtarzalność ustawień i optymalne rezultaty w każdym cyklu spawania.
| MATERIAL | PROCESS | SHIELDING GAS | WIRE DIAMETER |
|---|---|---|---|
| MILD STEEL | MIG DC | 100%CO2 | 0.6 – 1.0mm |
| MILD STEEL | MIG DC | 75%Ar + 25%CO2 mixed gas | 0.6 – 1.0mm |
| ALUMINUM | MIG DC | 100% argon | 1.0mm |
| FLUX CORE | MIG DC | – | 0.6 – 1.0mm |

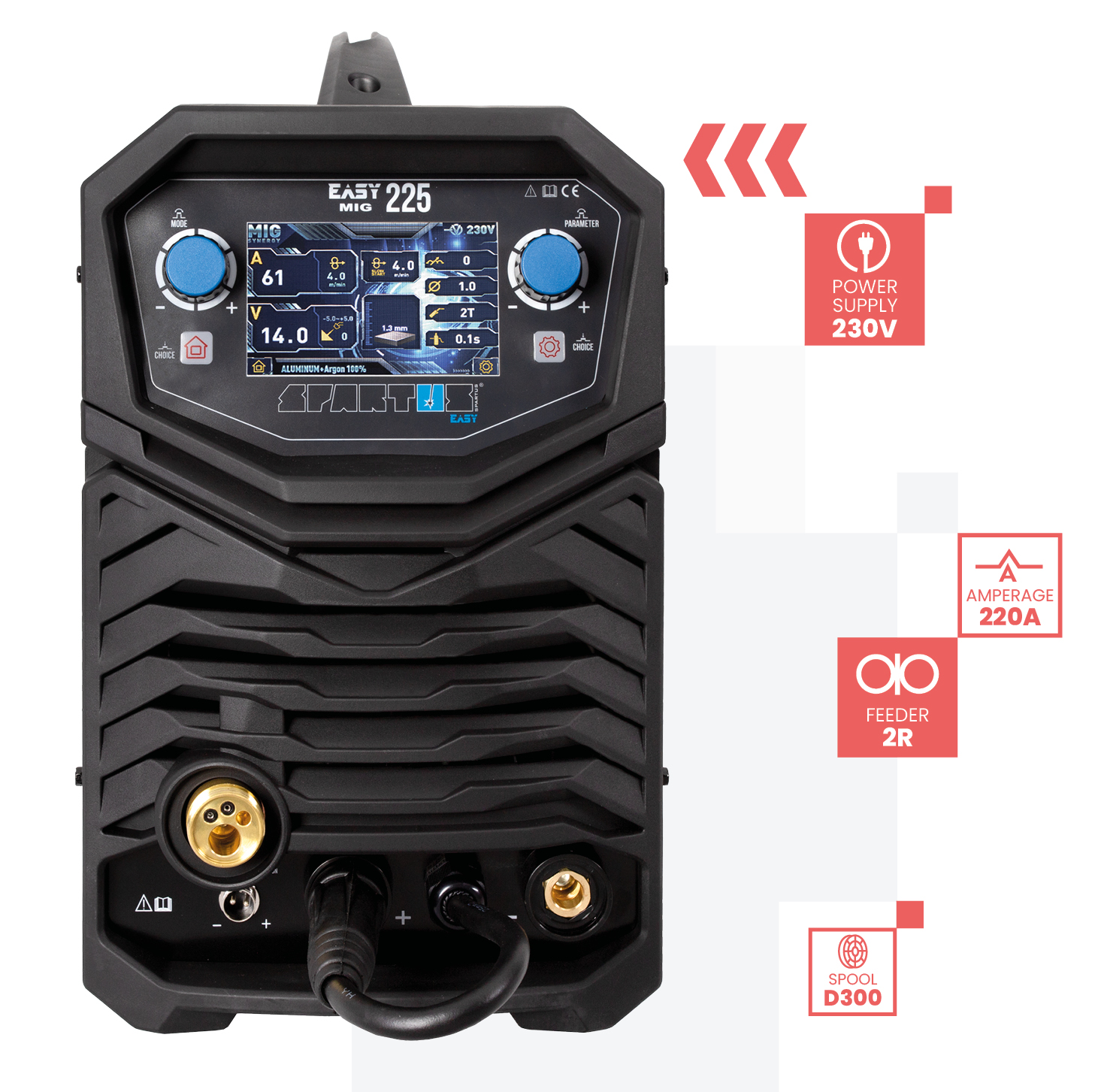

Intuitive Control
SPARTUS EasyMIG 225 features a clear LCD display and ergonomic parameter knobs, making operation quick and easy. The screen shows all key values – current, voltage, inductance, wire diameter, material thickness, and wire feed speed.
Dedicated buttons allow instant selection of the welding method (MIG/MAG, MMA, TIG Lift), shielding gas type, wire diameter, and 2T/4T mode.
Additional test buttons for gas flow and wire feed make setup even more convenient.
Durable Construction and Mobility
The compact metal housing (570 × 265 × 460 mm) and low weight (19 kg) ensure both durability and portability. A sturdy transport handle makes movement easy, while an efficient cooling system with a fan and thermal protection prevents overheating. The IP21S protection rating guarantees safe operation in indoor workshop environments.

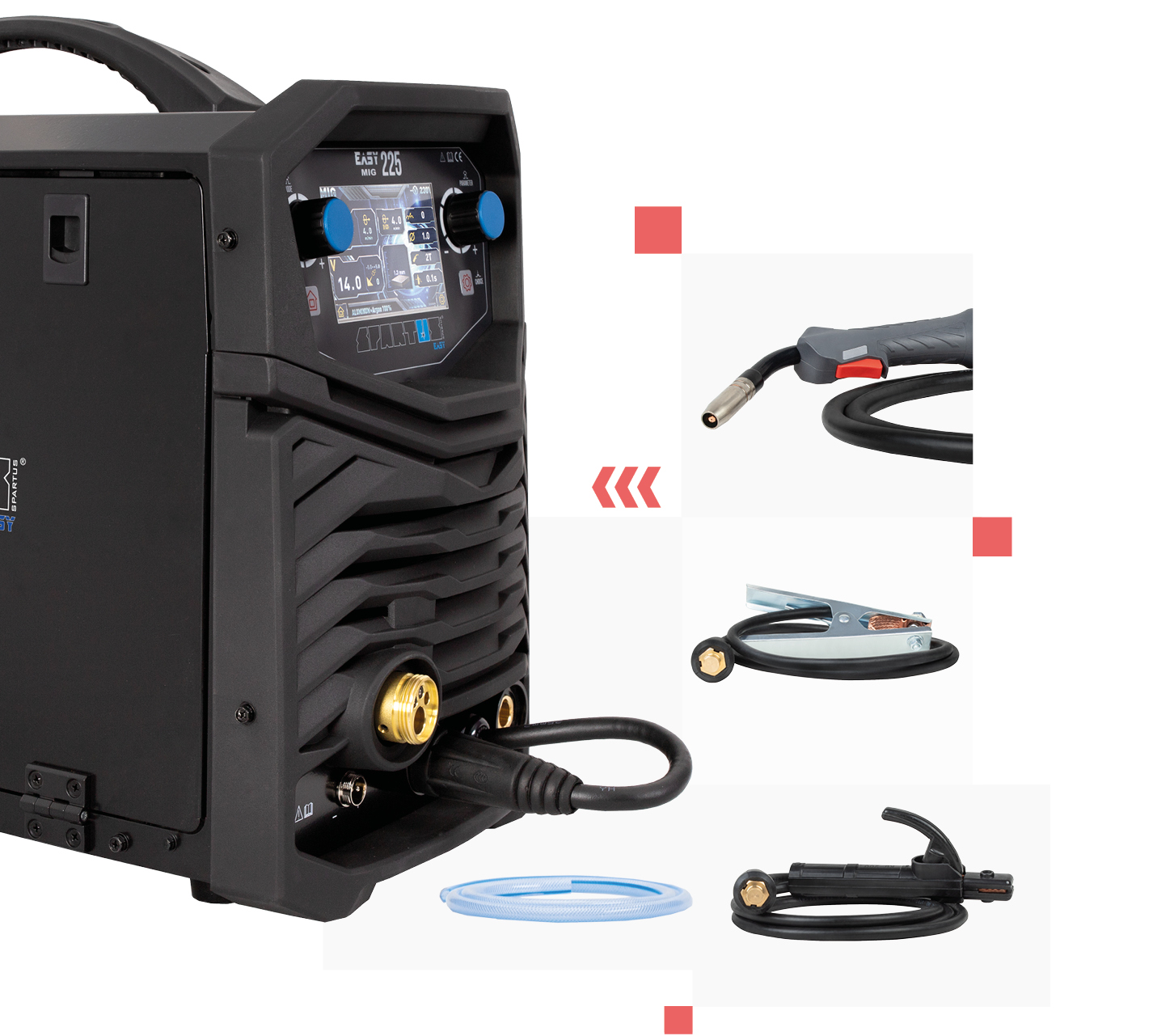

Standard Equipment
SPARTUS Easy series welders are supplied as complete sets, containing all the essential components needed to start work.
Package equipment:
• EasyMIG 225
• MIG gun SPARTUS SPE 150 3m
• wire guide roller 0.8 – 1.0V fi30
• electrode holder
• work clamp
• gas hose with bands
• user’s manual
SPARTUS EasyMIG 225 is a versatile 3-in-1 power source that combines advanced technology, ease of use, and robust construction. Ideal for workshops, assembly work, and demanding users who value reliability and precision. A perfect choice for those seeking industrial-grade quality in a compact form.
